RT/duroid 6006 PCB 25mil: A Game-Changer in the High-Frequency PCB Industry

  • December 16, 2023

RT/duroid 6006 PCB 25mil: A Game-Changer in the High-Frequency PCB Industry



Introduction

The high-frequency PCB industry is witnessing a significant breakthrough with the introduction of the RT/duroid 6006 PCB 25mil. This advanced technology promises to revolutionize high-frequency applications by providing unprecedented performance and reliability. This article delves into the details of this groundbreaking development and explores its potential implications for the industry.



Unveiling the RT/duroid 6006 PCB 25mil

RT/duroid 6006 PCB 25mil is a cutting-edge high-frequency material designed to meet the stringent demands of modern electronic devices and communication systems. Leveraging state-of-the-art technology, this PCB substrate offers exceptional electrical performance, mechanical stability, and thermal resilience. Its ultra-low loss tangent and high-reliability characteristics enable engineers to design and manufacture high-frequency circuits that deliver unparalleled signal integrity and performance.



Unmatched Electrical Performance

The key advantage of Rogers 6006 high frequency PCB 25mil lies in its outstanding electrical properties. With an extremely low dielectric constant (εr) of 6.15±0.15, it enables the precise propagation of high-frequency signals with minimal distortion. This low εr ensures controlled impedance, reduces signal loss, and enhances the overall circuit performance.



Moreover, the material's low dissipation factor (loss tangent) of 0.0025 ensures minimal energy loss, thus optimizing signal transmission efficiency. This feature is particularly crucial in high-frequency applications, such as radar systems, satellite communication, and advanced wireless networks, where accurate signal reproduction is vital.

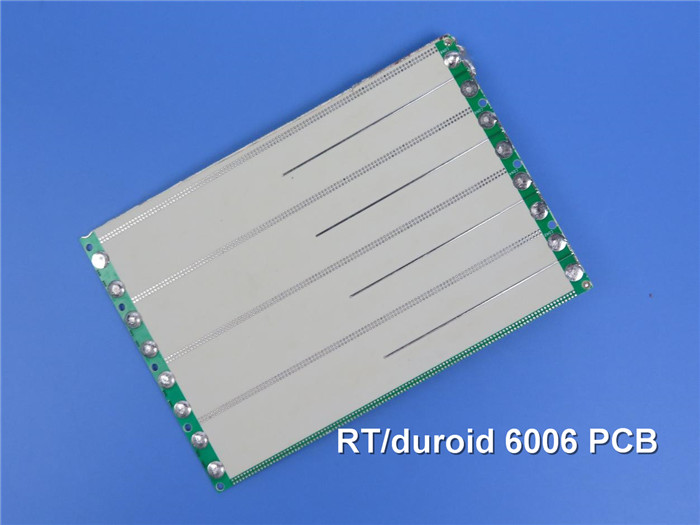

Rogers 6006 high frequency PCB



Mechanical Stability and Thermal Resilience

Apart from superior electrical properties, the Rogers 6006 PCB exhibits remarkable mechanical stability and thermal resilience. Its glass-reinforced construction enhances its rigidity, making it resistant to warping or twisting, even in challenging operating conditions. This attribute reduces the risk of signal distortion due to mechanical stresses, ensuring reliable performance over an extended period.



Furthermore, the material's low moisture absorption and excellent thermal conductivity enable effective heat dissipation. Heat management is crucial for maintaining circuit integrity and preventing performance degradation, especially in high-power applications. The RT/duroid 6006 PCB 25mil's ability to handle high temperatures and dissipate heat efficiently positions it as an optimal choice for high-frequency applications operating in demanding environments.



Design Flexibility and Manufacturability

In addition to its exceptional electrical and mechanical properties, the RT/duroid 6006 PCB 25mil substrate offers design flexibility and ease of manufacturing. Its compatibility with traditional fabrication processes allows PCB manufacturers to seamlessly integrate this material into their existing production lines.



The material's dimensional stability and low z-axis expansion ensure precise traces and pad alignment during PCB manufacturing, contributing to accurate impedance control. This characteristic, combined with its uniform thickness and excellent reproducibility, facilitates reliable and consistent performance across production batches.



Applications and Future Prospects

The introduction of RT/duroid 6006 PCB opens up exciting possibilities in various high-frequency applications. It enables the development of next-generation wireless devices, including 5G base stations, WLAN routers, and IoT modules. Furthermore, it proves beneficial in aerospace and defense systems, where signal integrity and miniaturization are critical.



As the demand for high-frequency circuits continues to surge, the superior electrical performance, mechanical stability, and thermal resilience of this cutting-edge PCB material position it as a game-changer in the industry. Its implementation can result in improved performance, reduced signal loss, and increased efficiency in high-frequency electronic systems.



Conclusion

In conclusion, the advent of the RT/duroid 6006 PCB 25mil material marks a major milestone in the high-frequency PCB industry. Its exceptional electrical performance, mechanical stability, and thermal resilience set new standards for high-frequency circuit design and manufacturing. With this groundbreaking technology, the industry can achieve enhanced signal integrity, reduced signal loss, and improved system efficiency. As the demand for high-frequency applications continues to grow, the future looks bright for Rogers RT/duroid 6006 PCB, poised to transform the industry and enable innovative electronic devices of tomorrow.
