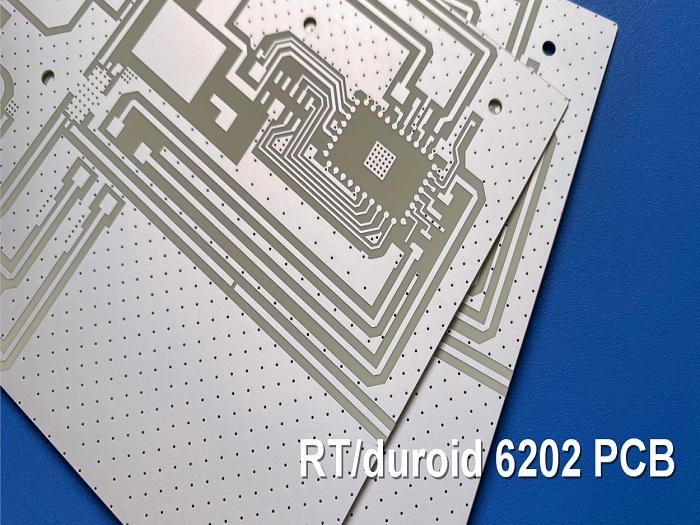

Here are some advantages of choosing RT/duroid 6202 High Frequency PCB over other materials: 1. Low Loss and Low Dielectric Constant:  RT/duroid 6202 is specifically designed with low loss and low dielectric constant properties. This means it offers minimal signal loss and excellent signal integrity, making it ideal for high-frequency applications where maintaining signal quality is crucial. 2.Dimensional Stability:  The limited woven glass reinforcement in RT/duroid 6202 ensures excellent dimensional stability, typically ranging from 0.05 to 0.07 mils/inch. This stability eliminates the need for double etching and helps achieve tight positional tolerances, saving time and cost in the manufacturing process. 3.Tight Thickness Control:  RT/duroid 6202 offers tight thickness control, which is essential for meeting strict design specifications and ensuring optimal performance. This level of control allows for precise customization and reliable consistency in PCB thickness. 4. Wide Range of Configurations:  RT/duroid 6202 supports a variety of PCB configurations, including single-layer, double-layer, multi-layer, and hybrid options. This flexibility allows you to choose the most suitable configuration for your specific application requirements. 5.Diverse Copper Weights and Dielectric Thickness Options:  The availability of different copper weights (1oz and 2oz) and dielectric thicknesses (ranging from 5mil to 30mil) provides you with the flexibility to select the appropriate conductivity and insulation levels for your project. 6. Excellent Electrical and Mechanical Properties:  RT/duroid 6202 exhibits exceptional electrical and mechanical properties. It offers in-plane expansion coefficient matching, ensuring stability during temperature variations. Its low dissipation factor and low thermal coefficient of Dk make it highly reliable and efficient in demanding high-frequency environments. 7. Wide Range of Surface Finish Options:  With a variety of surface finish options available, including bare copper, HASL, ENIG, OSP, immersion tin, immersion silver, pure gold, and ENEPIG, RT/duroid 6202 allows you to choose the most suitable finish for your specific application, ensuring durability and performance. 8. Versatile Applications:  RT/duroid 6202 finds applications in a broad range of industries and technologies, including phased array antennas, radar systems, GPS antennas, power backplanes, commercial airline collision avoidance systems, and beam forming networks. Its versatility and reliability make it a go-to choice for high-frequency circuitry. By selecting RT/duroid 6202 High Frequency PCB, you can benefit from its low loss, excellent dimensional stability, tight thickness control, diverse configurations, exceptional electrical and mechanical properties, and wide range of applications, ensuring optimal performance and reliability for your high-frequency projects.

Enhance your electronic designs with the superior performance of RO3203 high frequency circuit materials. Specifically engineered with ceramic-filled laminates reinforced with woven fiberglass, RO3203 stands out for its exceptional electrical performance and mechanical stability, all while maintaining cost-effectiveness. As part of the renowned RO3000 series, RO3203 materials offer enhanced mechanical stability, making them a top choice for high-frequency applications. With a dielectric constant of 3.02 and an impressively low dissipation factor of 0.0016, RO3203 materials provide extended usability up to frequencies beyond 40 GHz. The material's thermal conductivity of 0.48 W/mK ensures efficient heat conduction, contributing to optimal performance in demanding environments. RO3203 boasts a volume resistivity of 107 MΩ.cm and surface resistivity of 107 MΩ, attesting to its excellent electrical properties. Its exceptional dimensional stability of 0.8 mm/m in the X and Y directions, coupled with a moisture absorption rate of less than 0.1%, demonstrates its resistance to environmental factors. Additionally, the material exhibits different coefficients of thermal expansion in various directions, with the Z-direction coefficient at 58 ppm/℃ and the X and Y-direction coefficients both at 13 ppm/℃. With a Thermal Decomposition Temperature (Td) of 500℃ and a density of 2.1 gm/cm3, RO3203 ensures reliability and durability in challenging conditions. After soldering, RO3203 maintains a copper peel strength of 10.2 lbs/in and a UL 94 V-0 flammability rating, making it compatible with lead-free processes. Its versatility extends to PCB capabilities, offering single-layer, double-layer, multi-layer, and hybrid configurations, with options for different copper weights and thicknesses. Embrace innovation with RO3203 PCBs, suitable for various industries and technologies, including automotive collision avoidance systems, GPS antennas, microstrip patch antennas, direct broadcast satellites, and remote meter readers. Elevate your designs with the superior performance and reliability of RO3203 high frequency PCBs.

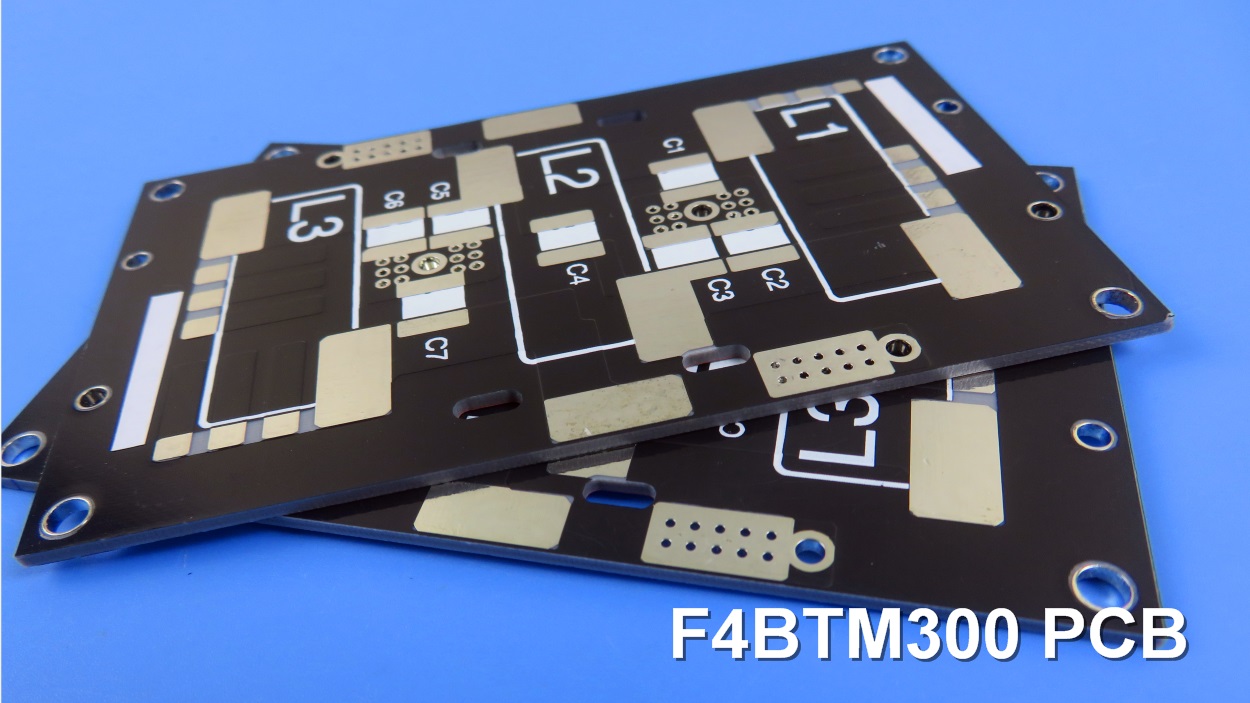

Introducing the F4BTM High Frequency PCB by Wangling: Unleash the Power of Advanced Technology! Experience the next revolution in PCB technology with Wangling's F4BTM High Frequency PCB. This cutting-edge PCB combines fiberglass cloth, nano-ceramic fillers, and PTFE resin to deliver superior performance. With enhanced dielectric properties, improved heat resistance, and low loss characteristics, it's perfect for demanding applications. The F4BTM series offers flexibility with a DK range from 2.98 to 3.5. Available in various sizes and thicknesses, it caters to your project's needs while saving costs. Its radiation-resistant and low out-gassing properties ensure reliability in challenging environments. Our PCB manufacturing capabilities cover single-sided, double-sided, multilayer, and hybrid PCBs. Choose from different copper weights, dielectric thicknesses, solder mask colors, and surface finishes to customize your design. The F4BTM High Frequency PCB finds applications in antennas, mobile internet, sensor networks, radar systems, aerospace, satellite navigation, and power amplifiers. Join us in powering the future of electronics with Wangling's F4BTM High Frequency PCB.

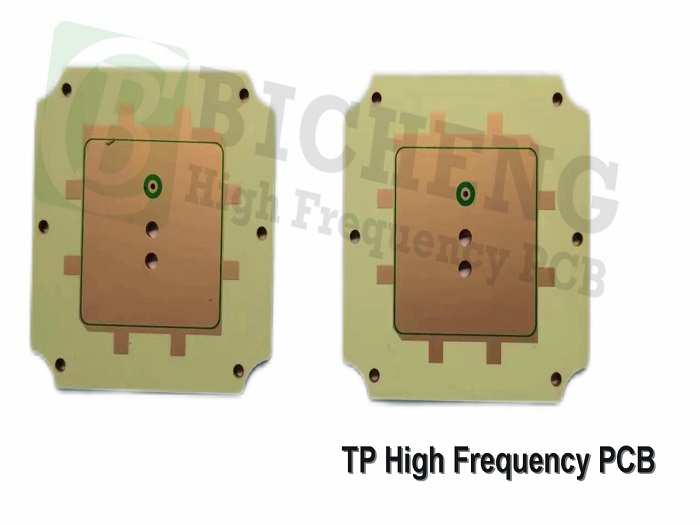

TP High Frequency PCB   Introduction Wangling’sTP material is a unique high-frequency thermoplastic material in the industry. The dielectric layer of TP-type laminates consists of ceramics and polyphenylene Oxide resin (PPO), without fiberglass reinforcement. The dielectric constant can be precisely adjusted by adjusting the ratio between ceramics and PPO resin. The production process is special, and it has excellent dielectric performance and high reliability.   Features The dielectric constant can be arbitrarily selected within the range of 3 to 25 according to circuit requirements, and it is stable. Common dielectric constants include 3.0, 4.4, 6.0, 6.15, 9.2, 9.6, 10.2, 11, 16, and 20.    The material demonstrates low dielectric loss, with a slight increase at higher frequencies. However, this increase is not significant within the 10 GHz range.   For long-term operation, the material can withstand temperatures ranging from -100°C to +150°C, showcasing excellent low-temperature resistance. It's important to note that temperatures exceeding 180°C may result in deformation, copper foil peeling, and significant changes in electrical performance.   The material exhibits radiation resistance and displays low outgassing properties.   Furthermore, the adhesion between the copper foil and dielectric is more reliable compared to ceramic substrates with vacuum coating.   PCB Capability Let’s see our PCB Capability on TP materials.   Layer count: We offer single-sided and double-sided PCBs based on the characteristics of the material.   Copper weight: We provide options of1oz (35µm) and 2oz (70µm), catering to different conductivity requirements.   Wide range ofdielectric thicknesses are available, such as 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm, 3.0mm, 4.0mm, 5.0mm, 6.0mm, 7.0mm, 8.0mm, 10.0mm, and 12.0mm, allowing flexibility in design specifications.   Due to laminate size constraints, the maximum PCB we can provide is 150mm X 220mm.   Solder mask: We offer various solder mask colors, including green, black, blue, yellow, red, and more, enabling customization and visual distinction.   Our surface finish options include bare copper, HASL, ENIG, immersion silver, immersion tin, OSP, pure gold, ENEPIG, and more, ensuring compatibility with your specific requirements.   Applications Displayed on the screen is a TP high-frequency PCB with a thickness of 1.5mm, featuring OSP coating. TP high-frequency PCBs are also utilized in applications such as Beidou, missile-borne systems, fuzes, and miniaturized antennas etc.

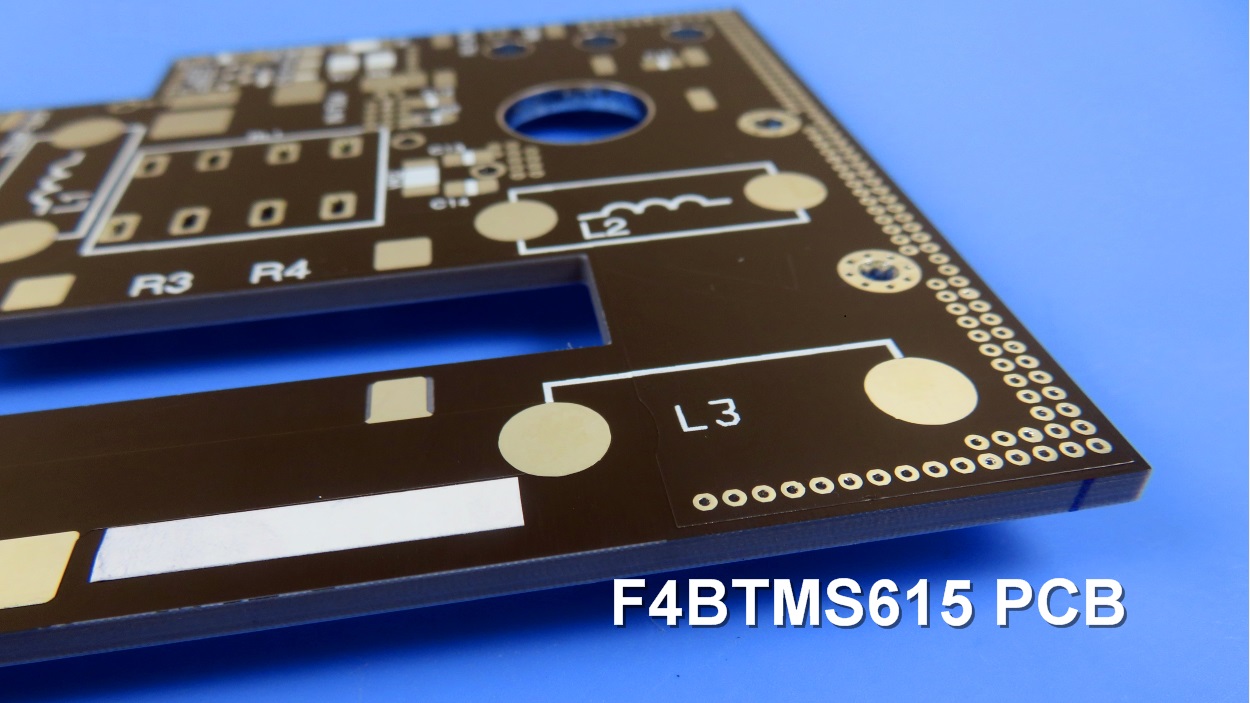

Introducing the F4BTMS PCB, the ultimate solution for high-performance electronic designs! The F4BTMS series is the upgraded version of the acclaimed F4BTM series. With a blend of ceramics and ultra-thin fiberglass cloth reinforcement, this PCB material offers a wider range of dielectric constants, minimizing electromagnetic interference and enhancing stability. Experience flexibility with dielectric constants ranging from 2.2 to 10.2, while enjoying minimal energy dissipation thanks to its low dielectric loss. The F4BTMS PCB boasts exceptional temperature stability and dimensional precision, ensuring reliable connections. Choose from a variety of layer counts, copper weights, dielectric thicknesses, and sizes. With diverse solder mask colors and surface finish options, our manufacturing capabilities cater to your unique requirements.  From aerospace to microwave applications, radar systems to phased array antennas, the F4BTMS PCB excels in various domains, providing top-notch performance and reliability. Upgrade your electronics with the F4BTMS PCB, the cutting-edge choice for innovation and excellence. Contact us today at j.shi@bichengpcb.com to take your designs to new heights.

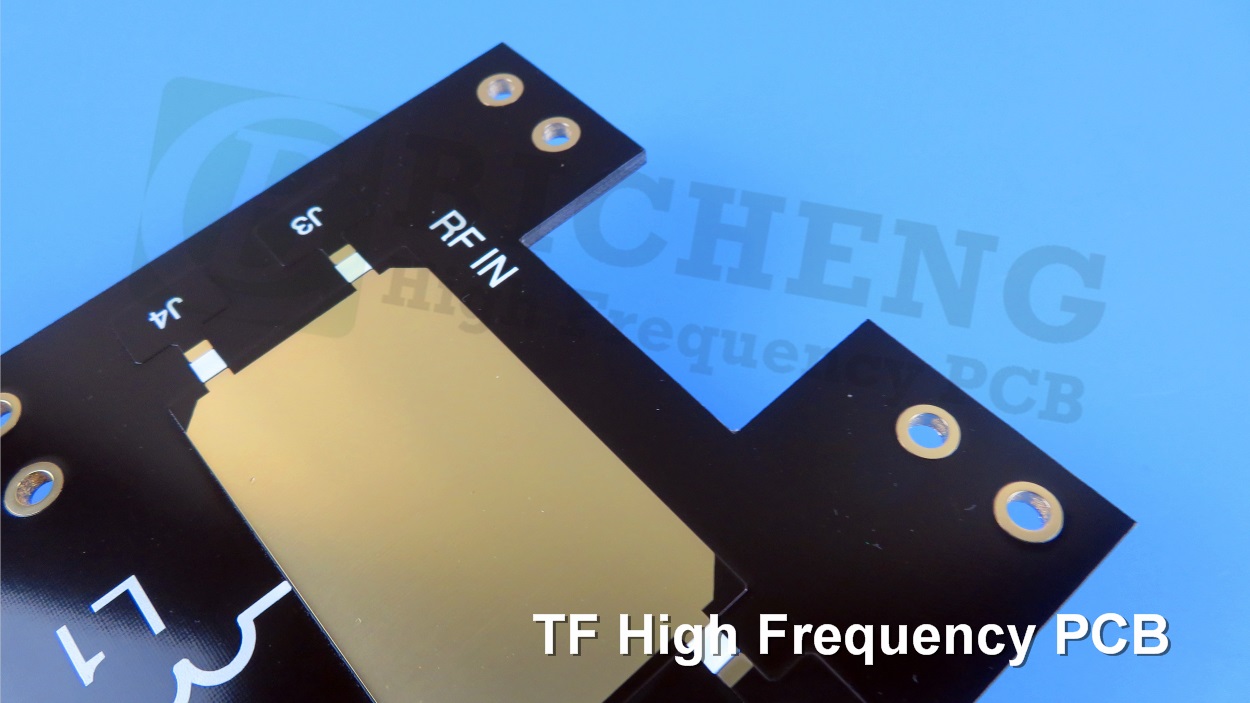

Experience the power of Wangling's TF High Frequency PCB, the ultimate choice for microwave and millimeter-wave applications. With precise dielectric adjustment, exceptional performance, and unbeatable reliability, our TF laminates redefine what's possible in high-frequency design. Featuring a stable and wide range of dielectric constants, exceptionally low dissipation factors, and a temperature tolerance from -80°C to +200°C, our TF laminates are built to excel in the most demanding environments." Pairing our TF laminates with our comprehensive PCB manufacturing capabilities, we offer the flexibility you need. Choose from single-sided or double-sided PCBs, different copper weights, various dielectric thicknesses, and a range of solder mask colors and surface finishes. From millimeter-wave radar sensors and antennas to transceivers, modulators, multiplexers, and power supply equipment, our TF High Frequency PCB is the go-to choice for cutting-edge technology. Unleash the full potential of your high-frequency designs with Wangling's TF High Frequency PCB. Contact us now to elevate your technology to the next level!
