How Does TSM-DS3 PCB Compare to Traditional Epoxy PCBs?

In the realm of high-power applications, where precision, reliability, and performance are non-negotiable, the TSM-DS3 PCB emerges as a good PCB. Crafted from a ceramic-filled reinforced material with minimal fiberglass content (~5%), this PCB stands as a formidable rival to traditional epoxies, offering a host of innovative features tailored to meet the demands of complex multilayer designs.

1. Introduction to TSM-DS3

TSM-DS3 5mil PCB represents a thermally stable marvel, setting industry standards with its remarkable low-loss core (Df = 0.0011 at 10 GHz) that guarantees predictability and consistency akin to the best fiberglass-reinforced epoxies. Engineered for high-power environments, TSM-DS3 showcases a thermal conductivity of 0.65 W/m*K, efficiently conducting heat away from critical areas within a PWB design. Furthermore, its low coefficients of thermal expansion are tailored to withstand rigorous thermal cycling, ensuring unwavering performance under extreme conditions.

2. Features That Define Excellence

2.1 Dielectric Constant:

With a dielectric constant of 3.0 boasting tight tolerance of 0.05 at 10 GHz/23°C, TSM-DS3 ensures precise signal integrity in high-frequency applications.

2.2 Dissipation Factor:

 A low dissipation factor of 0.0014 at 10 GHz guarantees minimal signal loss, making it ideal for critical communication systems.

2.3 High Thermal Conductivity:

The impressive thermal conductivity of 0.65 W/MK (unclad) facilitates superior heat management, crucial for high-power circuitry.

2.4 Low Moisture Absorption:

With a mere 0.07% moisture absorption rate, TSM-DS3 maintains its structural integrity even in humid environments.

2.5 Matched Copper CTE:

Aligned with copper's coefficient of thermal expansion in all axes (X: 10 ppm/°C, Y: 16 ppm/°C, Z: 23 ppm/°C), ensuring dimensional stability and reliability.

3. Unveiling the Benefits

3.1 Minimal Fiberglass Content:

With only ~5% fiberglass content, TSM-DS3 combines strength with flexibility, enabling intricate designs and high layer counts.

3.2 Dimensional Stability:

Comparable to epoxy, TSM-DS3 pcb substrate offers exceptional dimensional stability, crucial for large-format PCBs with complex layouts.

3.3 Predictable Manufacturing:

Ensures consistent and predictable manufacturing processes, vital for achieving high yield rates and quality standards.

3.4 Temperature Stability:

Maintains a stable dielectric constant (Dk) within ±0.25% across a wide temperature range (-30 to 120°C), ensuring reliability in varying conditions.

3.5 Compatibility:

Seamlessly integrates with resistive foils, expanding its utility across diverse applications.

How does TSM-DS3 PCB compare to traditional epoxy PCBs?

Comparison between TSM-DS3 PCB and Traditional Epoxy PCBs

1)Dielectric Properties:

TSM-DS3 PCB: TSM-DS3 boasts a dielectric constant of 3.0 with a tight tolerance of 0.05 at 10 GHz/23°C, offering precise signal integrity.

Epoxy PCBs: Traditional epoxy PCBs typically have varying dielectric constants, which can lead to signal distortion and impedance mismatch.

2)Thermal Conductivity:

TSM-DS3 PCB: TSM-DS3 features a high thermal conductivity of 0.65 W/MK, aiding in efficient heat dissipation in high-power applications.

Epoxy PCBs: Epoxy PCBs generally have lower thermal conductivity, which may limit their performance in heat-intensive environments.

3)Moisture Absorption:

TSM-DS3 PCB: TSM-DS3 exhibits low moisture absorption of 0.07%, ensuring stability and reliability even in humid conditions.

Epoxy PCBs: Traditional epoxy PCBs may absorb more moisture over time, leading to potential performance degradation and reliability issues.

4)Dimensional Stability:

TSM-DS3 PCB: TSM-DS3 offers exceptional dimensional stability comparable to epoxy, crucial for large-format PCBs with complex layouts.

Epoxy PCBs: Epoxy PCBs may exhibit dimensional changes under varying temperatures, impacting the overall reliability of the circuit.

5)Compatibility with Copper:

TSM-DS3 PCB: TSM-DS3 is matched to copper's coefficient of thermal expansion (CTE) in all axes, ensuring compatibility and reliability in diverse applications.

Epoxy PCBs: Epoxy PCBs may not always be matched to copper CTE, potentially leading to reliability issues related to thermal stresses.

6)Manufacturing Consistency:

TSM-DS3 PCB: TSM-DS3 offers predictability and consistency in manufacturing processes, akin to the best fiberglass-reinforced epoxies.

Epoxy PCBs: Variations in material properties and manufacturing processes can sometimes lead to inconsistencies in traditional epoxy PCBs.

7)Applications:

TSM-DS3 PCB: TSM-DS3 is well-suited for high-power applications where thermal management, signal integrity, and reliability are paramount.

Epoxy PCBs: Traditional epoxy PCBs are widely used across various industries but may not offer the same level of performance and reliability in high-power applications.

In summary, TSM-DS3 high frequency circuit board PCB sets itself apart from traditional epoxy PCBs through its superior dielectric properties, thermal conductivity, moisture resistance, dimensional stability, compatibility with copper, manufacturing consistency, and suitability for high-power applications. By offering a blend of cutting-edge features and performance benefits, TSM-DS3 redefines industry standards and paves the way for advanced PCB designs in demanding environments.

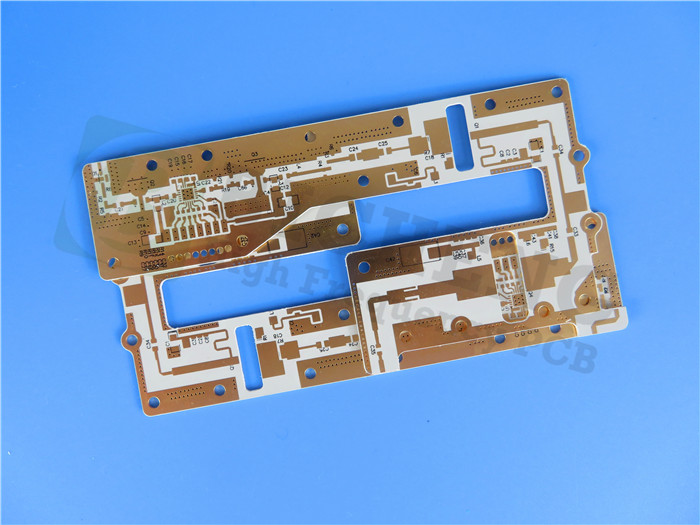

4. PCB Construction Details

Stackup: 2-layer rigid PCB with copper layers sandwiching the TSM-DS3 core.

Dimensions: 82mm x 82mm for precise and compact designs.

Trace/Space: Minimum of 4/7 mils for intricate circuitry.

Hole Size: Minimum of 0.4mm for optimized connectivity.

Finish: Immersion Silver for enhanced conductivity and corrosion resistance.

Thickness: Finished at 0.2mm with 1oz copper weight on outer layers.

Testing: 100% electrical testing ensures quality and reliability.

5. Exploring PCB Statistics

Components: 36 for comprehensive functionality.

Pads: Total of 163, including through-hole and SMT pads for versatile connectivity.

Vias: 151 for efficient signal routing.

Nets: 2 for streamlined network connections.

6. Technical Specifications

Artwork: Gerber RS-274-X format for seamless integration.

Standard: Compliant with IPC-Class-2 standards for reliability and performance.

Availability: Worldwide availability for global projects and applications.

7. Applications That Define Innovation

The versatility of TSM-DS3 high frequency laminate pcb board opens doors to a myriad of applications, including:

Couplers

Phased Array Antennas

Radar Manifolds

mmWave Antenna/Automotive

Oil Drilling

Semiconductor/ATE Testing

8. Conclusion

In conclusion, the TSM-DS3 High frequency PCB stands as a beacon of innovation, offering a blend of cutting-edge features, uncompromising reliability, and unmatched performance for high-power applications. With its exceptional thermal properties, stability, and compatibility,TSM-DS3redefines industry standards and paves the way fornext-generation PCB designs. Embrace the future of high-power electronics with TSM-DS3, where precision meets performance, and reliability knows no bounds.
