Introduction to RO4003C

The RO4003C PCB material represents a fusion of advanced woven glass reinforced hydrocarbon/ceramics, embodying the electrical prowess of PTFE/woven glass and the manufacturability of epoxy/glass. This unique blend offers unparalleled performance characteristics, making it an ideal choice for a wide range of high-frequency applications.

One of the standout features of 12mil RO4003C laminates is their ability to provide precise control over the dielectric constant (Dk) and low loss properties, all while utilizing a processing method akin to standard epoxy/glass materials. Notably, the cost-effectiveness of RO4003C laminates sets them apart from traditional microwave laminates, offering a compelling alternative for performance-sensitive projects.

Features That Define Excellence

The Rogers 4003C PCB comes packed with a myriad of features that underscore its superiority in the realm of high-frequency circuitry:

RO4003CDielectric Constant (Dk): 3.38 +/- 0.05 at 10GHz

Dissipation Factor: 0.0027 at 10GHz

Thermal Conductivity: 0.71 W/m/°K

Thermal Coefficient of Dielectric Constant: +40 ppm/°C within a temperature range of -50°C to 150°C

CTE Compatibility: Matched to copper with X and Y axes values of 11ppm/°C and 14ppm/°C, respectively

Low Z-axis Coefficient of Thermal Expansion: 46 ppm/°C

High Tg: Exceeding 280°C

Minimal Moisture Absorption: Just 0.06%

Benefits That Elevate Performance

The Rogers RO4003C PCB isn't just about specifications; it's about delivering tangible benefits that cater to the needs of modern electronic design:

Ideal for Multi-Layer Constructions: Perfect for complex multi-layer board (MLB) designs

Cost-Effective Processing: Offers fabrication akin to FR-4 at a lower cost

Tailored for High-Volume Applications: Suited for performance-sensitive projects with high production demands

Competitive Pricing: Balances high performance with cost-efficiency

What are the benefits of using RO4003C PCB in multi-layer board constructions?

Using RO4003C PCB in multi-layer board constructions offers a range of benefits that cater to the needs of modern high-frequency electronic applications. Here are some key advantages of employing RO4003C Rogers PCB material in multi-layer designs:

1.Precise Control Over Dielectric Constant (Dk):

RO4003C laminates provide tight control over the dielectric constant, ensuring consistent signal integrity across multiple layers. This is crucial for maintaining signal integrity in high-frequency circuits.

2.Low Loss Properties:

The low loss characteristics of RO4003C PCB contribute to reduced signal attenuation, allowing for efficient transmission of high-frequency signals within multi-layer boards.

3.Cost-Effectiveness:

Despite its high-performance capabilities, RO4003C offer cost advantages compared to traditional microwave materials. This makes them a cost-effective choice for multi-layer board constructions.

4.Compatibility with High-Volume Production:

RO4003C PCB is designed for performance-sensitive applications that require high-volume production. Its manufacturability and reliability make it suitable for mass production environments.

5.Thermal Management:

With a low thermal coefficient of dielectric constant and excellent thermal conductivity, RO4003C PCB helps in managing heat dissipation within multi-layer boards, ensuring optimal performance even in demanding thermal conditions.

6.Dimensional Stability:

The CTE matching of RO4003C PCB to copper minimizes the risk of mechanical stress and warping in multi-layer constructions, enhancing the overall dimensional stability of the boards.

7.Reliability and Durability:

RO4003C laminates are known for their reliability and durability, offering long-term performance stability in multi-layer board configurations, which is essential for critical electronic systems.

8.High Frequency Performance:

RO4003C PCBs are optimized for high-frequency applications, making them ideal for multi-layer designs that require precise signal integrity and minimal signal loss at elevated frequencies.

9.Ease of Processing:

Unlike PTFE-based materials that may require special handling procedures, RO4003C laminates can be processed using standard fabrication methods, simplifying the manufacturing process for multi-layer boards.

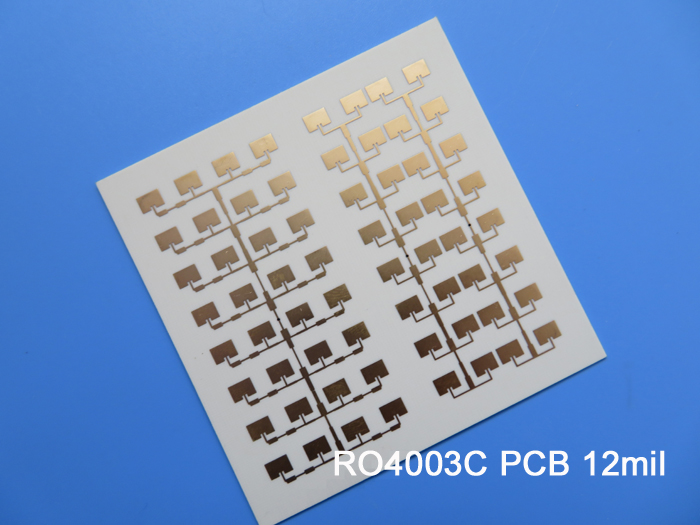

A Closer Look at PCB Construction

The RO4003C 12mil Rogers substrate PCB is meticulously crafted to meet stringent quality standards and performance requirements:

Stackup: 2-layer rigid PCB

Dimensions: 66.95mm x 38.29mm with tight tolerances

Trace/Space Requirements: Minimum of 4/4 mils

Hole Size: 0.4mm with no blind vias

Finished Thickness: 0.4mm with 1oz copper weight

Surface Finish: ENEPIG for enhanced reliability

Quality Assurance: 100% electrical testing pre-shipment

Statistics and Specifications

For those who appreciate the finer details, here are some key statistics for the RO4003C PCB:

Components: 11

Total Pads: 24

Thru Hole Pads: 15

Top SMT Pads: 9

Bottom SMT Pads: 0

Vias: 9

Nets: 2

Applications That Define Versatility

The RO4003C high frequency laminate PCB board finds its home in a diverse array of applications, including:

Cellular Base Station Antennas and Power Amplifiers

RF Identification Tags

Automotive Radar and Sensors

LNB's for Direct Broadcast Satellites

Embracing Global Standards

Committed to quality and reliability, the RO4003C PCB adheres to the IPC-Class-2 quality standard, ensuring consistent performance and durability across a worldwide market.

FAQs about RO4003C PCB

1. What makes RO4003C PCBs stand out in the industry?

RO4003C PCBs offer a unique blend of high-performance characteristics, cost-effectiveness, and ease of manufacturability, making them ideal for a wide range of applications.

2. Are RO4003C laminates environmentally friendly?

Yes, RO4003C materials are non-brominated and are not UL 94 V-0 rated, making them an environmentally friendly choice for high-performance applications.

3. What are the key features of RO4003C PCBs?

RO4003C PCBs exhibit a low dielectric constant, low dissipation factor, high thermal conductivity, excellent thermal stability, and low moisture absorption, making them suitable for demanding applications.

4. What are some typical applications of RO4003C PCBs?

RO4003C PCBs are commonly used in cellular base station antennas, power amplifiers, RF identification tags, automotive radar systems, sensors, and LNBs for direct broadcast satellites.

5. Can RO4003C PCBs be used in high-volume production?

Yes, RO4003C PCBs are designed for performance-sensitive, high-volume applications, offering a cost-effective solution without compromising on quality or performance.

6. What testing procedures are conducted on RO4003C PCBs before shipment?

All RO4003C PCBs undergo a 100% electrical test before shipment to ensure compliance with quality standards and optimal performance.

7. Is RO4003C PCB available globally?

Yes, RO4003C PCBs are available worldwide, making them easily accessible for a wide range of industries and applications.

Conclusion

In conclusion, the RO4003C High frequency PCB offers a blend of cutting-edge technology, cost-effectiveness, and high performance, making it the ideal choice for a wide range of applications. Embrace the future of PCB design with RO4003C Rogers PCB and unlock a world of possibilities in electronic engineering.

For more information or to discuss your specific requirements, feel free to contact us. Let RO4003C elevate your projects to new heights of excellence!
