TC600 PCB: A Versatile and High-Performance Solution for Diverse Applications

  • December 13. 2023
Introduction

Welcome to our comprehensive article introducing the TC600 60mil PCB, a cutting-edge and highly versatile product designed to deliver exceptional performance, reliability, and affordability. With its advanced technology and superior materials, the TC600 PCB is the perfect choice for a wide range of applications, including power amplifiers, filters, antennas, and more. In this in-depth exploration, we will delve into the key features, construction details, technical specifications, and typical applications of the TC600 PCB. We invite you to join us on this journey to discover the immense potential of this remarkable PCB solution.


Overview of the TC600 PCB

The TC600 high frequency PCB is constructed using Rogers TC600 woven fiberglass reinforced, ceramic filled, PTFE-based composite substrates. Its dielectric constant (DK) of 6.15 at 1.8MHz and 10 GHz/23°C allows for stable signal transmission across a wide range of frequencies. The low dissipation factor of 0.0017 and 0.0020 at 1.8 and 10 GHz/23°C respectively, contributes to higher amplifier or antenna efficiency. The TC600 PCB boasts "Best in Class" thermal conductivity at 1.1 W/m.K, making it an excellent choice for applications requiring effective heat dissipation. Furthermore, its outstanding dielectric constant stability (-75 ppm/°C) ensures reliable performance across various temperature ranges.

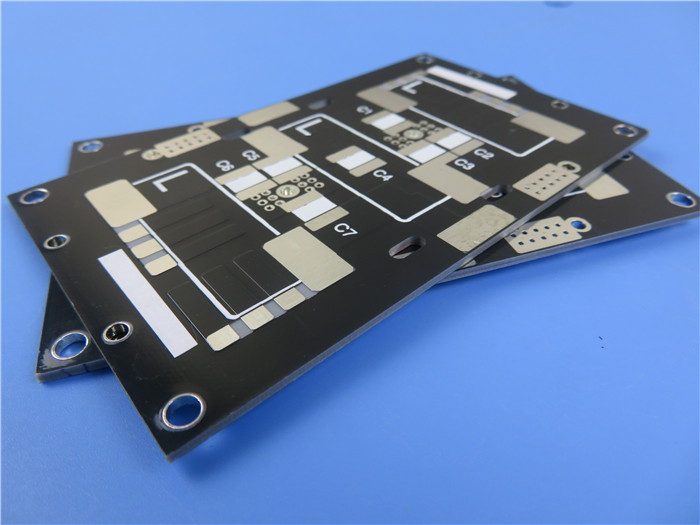

TC600 high frequency PCB


Key Features

The TC600 60mil material PCB offers several distinctive features that set it apart from other laminates on the market. Firstly, its mechanical robustness makes it a suitable replacement for brittle laminates that cannot withstand processing, impact, or high G-forces. This durability ensures a longer lifespan and reduces the need for frequent replacements. Secondly, the TC600 PCB is competitively priced for commercial applications, making it an excellent choice for cost-conscious customers without compromising on quality or performance. Thirdly, it exhibits a very low loss tangent, resulting in higher amplifier or antenna efficiency. This feature increases the overall performance and reliability of the PCB, making it an ideal choice for demanding applications. Lastly, the TC600 PCB offers high peel strength, ensuring reliable connections and narrow lines for enhanced performance.


Construction Details and Technical Specifications

The TC600 1.524mm substrate PCB is a 2-layer rigid PCB with copper layers on both sides. It features a thickness of 1.524mm (60mil), providing excellent stability and durability. The board dimensions are precision-manufactured at 141.5mm x 163mm, with a tolerance of +/- 0.15mm. The minimum trace/space is 6/4 mills, allowing for intricate circuit designs. The PCB has a finished thickness of 1.6mm, ensuring compatibility with standard assembly processes. It utilizes 1oz (1.4 mills) of copper on the outer layers, providing ample conductivity for various applications. The TC600 PCB features a surface finish of Immersion Gold, which offers excellent solderability and corrosion resistance. The top layer has a green solder mask, while the bottom layer does not require a solder mask. Furthermore, the PCB undergoes a 100% electrical test prior to shipment, ensuring optimal functionality.


Typical Applications

The TC600 PCB finds applications in a wide range of industries, thanks to its exceptional performance characteristics. Let's explore some of its typical applications:

Power Amplifiers: The stability, low loss tangent, and high thermal conductivity of the TC600 PCB make it an ideal choice for power amplifiers. It ensures efficient signal transmission without compromising on reliability.

Filters and Couplers: The TC600 PCB's performance attributes make it well-suited for filters and couplers, where consistent signal quality and low loss are crucial for their proper functioning.

Antennas: The TC600 PCB's durability, reliability, and low loss tangent make it an excellent choice for various antenna applications. Whether it's small footprint antennas, digital audio broadcasting (DAB) antennas, GPS antennas, or handheld RFID reader antennas, the TC600 PCB delivers exceptional performance and range.

Avionics: The TC600 PCB's mechanical robustness and high peel strength make it an ideal solution for avionics applications such as microwave combiners and power divider boards. These boards must withstand demanding conditions while ensuring reliable performance.


Rogers TC600 PCB


Conclusion

In conclusion, the Rogers TC600 PCB is a remarkable product that combines exceptional performance, reliability, and affordability. Its advanced features, including "Best in Class" thermal conductivity, dielectric constant stability, low loss tangent, mechanical robustness, and high peel strength, make it an excellent choice for a wide range of applications. From power amplifiers and filters to antennas and avionics, the TC60060mil laminatePCB offers superior performance and durability. With its competitive pricing, it caters to the needs of cost-conscious customers without compromising on quality. We are proud to offer this high-quality product worldwide. For further information or technical inquiries, please contact our dedicated sales team at sales20@bichengpcb.com. Experience the TC600 PCB, and unlock the potential for cutting-edge solutions in your industry.
