TLY-5Z 30mil PCB: A Deep Dive into Its Advanced Features and Applications

  • December 22. 2023
Introduction:

In the fast-paced world of technology, the need for high-performance and reliable printed circuit boards (PCBs) is paramount. Enter the TLY-5Z 30mil PCB, a game-changer in the field of PCB substrates. In this comprehensive blog, we will explore the Taconic TLY-5Z 30mil PCB in detail, covering its unique features, stackup, construction details, statistics, typical applications, and contact information. By delving into the intricacies of this cutting-edge PCB, readers will gain a thorough understanding of its immense capabilities and versatility.


PCB Substrates: An Engineering Marvel

The TLY-5Z 30mil PCB showcases its engineering prowess with a combination of Taconic's TLY-5Z ceramic, PTFE, and woven fiberglass reinforcement. This powerful substrate boasts an impressive dielectric constant (DK) of 2.2 +/- 0.04 at 1.9 GHz/23°C, making it ideal for high-frequency applications. Its low dissipation factor of 0.0015 at 10 GHz/23°C ensures minimal signal loss during transmission. The TLY-5Z 30mil PCB's TcDK of -72 ppm/°C from -55°C to 150°C guarantees excellent stability across a wide temperature range. With a moisture absorption rate of only 0.03%, this PCB maintains consistent performance, even in humid environments. Notably, its coefficient of thermal expansion (CTE) values of 30 ppm/°C (X-axis), 40 ppm/°C (Y-axis), and 130 ppm/°C (Z-axis) highlight its dimensional stability under varying conditions.


Features and Benefits: Unleashing the Power

2.1 Low Z Axis CTE: The TLY-5Z 30mil PCB's low Z-axis CTE ensures exceptional dimensional stability, minimizing the risk of delamination and warping. This feature enhances its reliability and longevity, making it a viable choice for demanding applications.


2.2 Plated Through Hole Stability: With its remarkable stability in plated through holes, this PCB guarantees reliable connectivity and seamless signal transmission. It is an excellent choice for applications requiring consistent performance and durability.


2.3 Low Density: Weighing just 1.92 g/cm3, the TLY-5Z 30mil material PCB is exceptionally lightweight. This attribute is a boon for applications that demand weight reduction without compromising on performance. Versatility meets efficiency!


2.4 Attractive Price/Performance Ratio: The TLY-5Z 30mil substrate PCB strikes the perfect balance between cost-effectiveness and high performance. With its attractive price point, this PCB offers exceptional functionality without breaking the bank.


2.5 Excellent Peel Strength: Strong adhesion between layers is crucial, and the TLY-5Z PCB delivers. Its excellent peel strength ensures structural integrity, enhancing the overall durability and performance of the PCB.


2.6 Compatible with Flat Copper: The compatibility with flat copper is a standout feature of the TLY-5Z PCB. This compatibility guarantees uniform copper distribution, resulting in consistent electrical performance and reliable signal transmission.

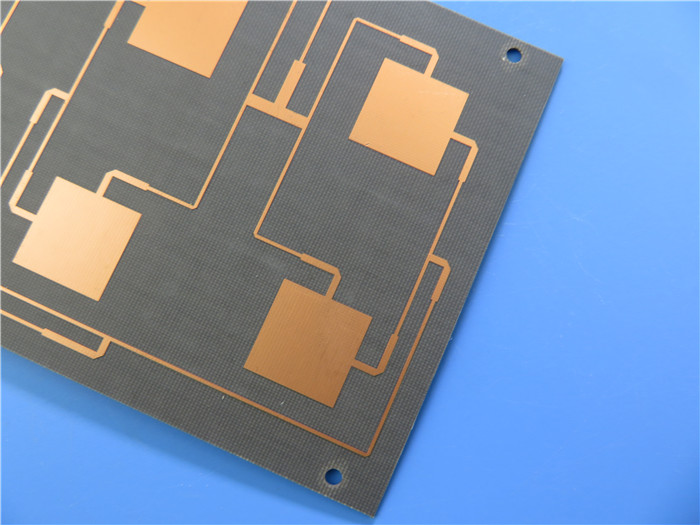

TLY-5Z 30mil material PCB


Stackup and Construction Details: The Blueprint of Brilliance

The TLY-5Z 30mil PCB boasts a 2-layer rigid stackup, with a copper layer thickness of 35 μm on each side. The core material measures 0.762 mm (30mil) and is composed of TLY-5Z. The dimensions of the board are 145mm x 90mm, with a tolerance of +/- 0.15mm, ensuring precision engineering. The PCB supports a minimum trace/space of 6/8 mils and a minimum hole size of 0.3mm. Notably, this PCB does not feature blind vias. With a finished thickness of 0.8mm and an outer layer copper weight of 1oz (1.4 mils), the TLY-5Z Taconic RF PCB strikes a balance between durability and performance. The via plating thickness is 20 μm, and the surface finish is achieved through immersion gold. The top silkscreen is white, while the bottom silkscreen is not applied. The top solder mask is blue, and the bottom solder mask is absent. Each PCB undergoes a meticulous 100% electrical test before shipment, guaranteeing the highest quality standards.


PCB Statistics: The Numbers Speak

The TLY-5Z 30mil PCB is designed to cater to diverse requirements, evident in its impressive statistics. It accommodates 17 components and boasts a total of 83 pads. Among these, there are 36 through-hole pads and 47 top surface-mount technology (SMT) pads. Bottom SMT pads are not present. With 66 vias and 5 interconnected nets, this PCB offers flexibility and adaptability for a wide range of applications.


Typical Applications: Unleashing Boundless Possibilities

The TLY-5Z 30mil PCB finds its niche in various applications, including:


Aerospace Components: The TLY-5Z 30mil PCB's exceptional dimensional stability, low density, and compatibility with flat copper make it an obvious choice for aerospace components. It ensures reliable signal transmission and durability even in the most challenging environments.


Low Weight Antennas for Aircraft: The lightweight nature of the TLY-5Z 30mil PCB enables its use in low-weight antennas for aircraft. Its low density contributes to weight reduction without compromising performance, ensuring optimal functionality and reliability.


RF Passive Components: With its high-performance characteristics, including low loss tangent and excellent peel strength, the TLY-5Z high frequency PCB is well-suited for RF passive components. It guarantees reliable signal transmission and durability, resulting in enhanced overall performance.



Contact Information: Unlocking Success

Should there be any technical inquiries or questions regarding the TLY-5Z 30mil PCB, please do not hesitate to contact the dedicated team at sales20@bichengpcb.com. With unrivaled expertise and commitment to customer satisfaction, they stand ready to provide comprehensive assistance and guidance.


Conclusion:

The Taconic TLY-5Z PCB has revolutionized the realm of PCB substrates, offering an unparalleled combination of advanced features and versatility. Through its low Z-axis CTE, plated through hole stability, low density, attractive price/performance ratio, excellent peel strength, and compatibility with flat copper, this PCB substrate shines in various industries. Its worldwide availability and unwavering commitment to quality ensure it serves as a catalyst for innovation and progress. Unleash the full potential of your applications with the TLY-5Z 30mil PCB, a true engineering marvel.
