Adhesive Polyimide Flexible PCB 0.15mm: A Revolutionary Solution for High-Performance Electronics

  • October 19. 2023
Introduction:

In the ever-evolving world of electronics, the demand for flexible and high-performance printed circuit boards (PCBs) is on the rise. To meet this demand, we are proud to introduce the PCB-Adhesive Polyimide Flexible PCB 0.15mm, a cutting-edge solution that pushes the boundaries of design flexibility, thermal resistance, and electrical properties. In this article, we will delve into the exceptional features and benefits of this newly shipped PCB, exploring its material composition, construction details, typical applications, and more.


Flexible PCB Material:

The PCB-Adhesive Polyimide Flexible PCB 0.15mm utilizes a halogen-free flame retardant single-sided flexible copper clad laminate. With a dielectric constant (Dk) of 3.7 at 1.1 GHz/23°C and a low dissipation factor of 0.037 at the same frequency, this material ensures excellent signal integrity and minimal loss. Additionally, it offers a high peel strength of 1.4 N/mm and operates flawlessly within an extensive temperature range of -40℃ to +85℃.

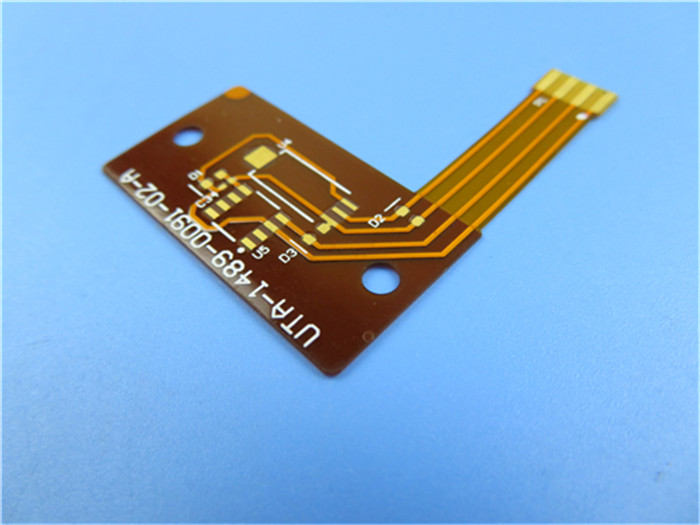

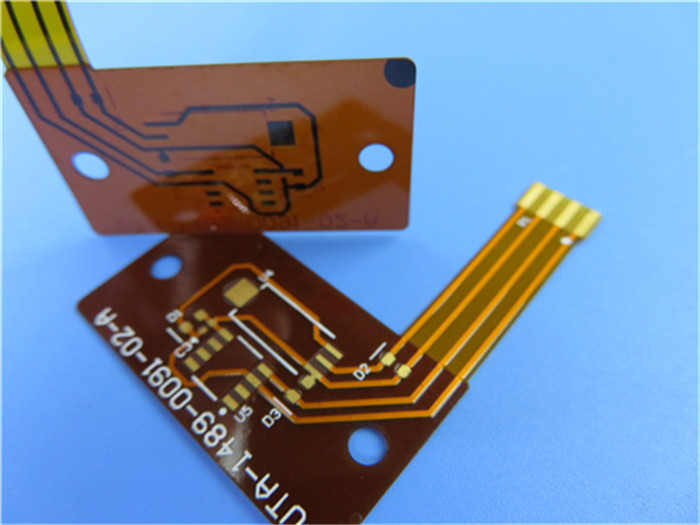

Adhesive Polyimide Flexible PCB 0.15mm


Benefits:

The Adhesive Polyimide Flexible PCB 0.15mm comes packed with several advantages that make it an ideal choice for a wide range of applications:


Halogen-Free and Flame Retardant: With a flammability rating of UL94 V-0, this PCB material guarantees safety and compliance with stringent regulations.

Excellent Flexibility and Thermal Resistance: The flexible nature of this PCB allows it to conform to various shapes and contours, making it perfect for applications where space is limited. Furthermore, it demonstrates remarkable thermal resistance, ensuring reliable performance even under demanding conditions.

Dimensional and Electrical Properties: The Adhesive Polyimide Flexible PCB 0.15mm maintains consistent dimensional stability, ensuring precise assembly and reliable functionality. Its exceptional electrical properties contribute to signal integrity and overall performance.

RoHS Compliance: This PCB is fully compatible with the EU RoHS directive, as it is free from hazardous substances such as lead (Pb), mercury (Hg), cadmium (Cd), hexavalent chromium (Cr6+), polybrominated biphenyls (PBB), and polybrominated diphenyl ethers (PBDE).

Stackup and Construction Details:

This PCB features a 1-layer flexible construction with the following specifications:

Copper Layer 1: 35 μm

Halogen-Free Adhesive

Polyimide Core SF305: 0.05 mm (1.97 mils)


Construction Specifications:

The PCB-Adhesive Polyimide Flexible PCB 0.15mm boasts several construction details that contribute to its performance and reliability:

Board Dimensions: The board measures 50mm x 7.1mm, ensuring compatibility with various electronic devices.

Minimum Trace/Space: The PCB supports a minimum trace/space of 4/4 mils, enabling intricate circuitry design.

Minimum Hole Size: The minimum hole size of 0.2mm allows for precise component placement and soldering.

Surface Finish: Immersion Gold ensures excellent conductivity and corrosion resistance.

Silkscreen: The top silkscreen is white, providing clear component labeling.

Solder Mask: Both the top and bottom solder masks feature yellow coverlay, safeguarding the PCB against environmental factors.

Electrical Testing: Each PCB undergoes a 100% electrical test before shipment, ensuring its functionality and reliability.


PCB Statistics:

The PCB-Adhesive Polyimide Flexible PCB 0.15mm offers the following statistics:

Components: 9

Total Pads: 9

Thru Hole Pads: 0

Top SMT Pads: 9

Bottom SMT Pads: 0

Vias: 0

Nets: 1


Artwork and Standards:

The PCB accepts Gerber RS-274-X artwork and adheres to the IPC-Class-2 standard, ensuring compatibility and compliance with industry guidelines.


Availability:

The Adhesive Polyimide Flexible PCB 0.15mm is available worldwide, allowing customers from different regions to benefit from its exceptional features and performance.


Typical Applications:

The versatility of the Adhesive Polyimide Flexible PCB makes it suitable for a wide range of applications, including:


Computers

Mobile phones

Digital cameras

VCRs

Office automation equipment


Contact Information:

For any technical inquiries or further information, please reach out to Jane at sales20@bichengpcb.com. Our dedicated sales team is ready to assist you.


Flexible PCB


Conclusion:

The Adhesive Polyimide Flexible PCB sets a new benchmark for flexible PCB solutions. With itsunparalleled material composition, exceptional construction details, and outstanding performance, this Flexible PCB offers a reliable and versatile solution for high-performance electronics. Whether it's for computers, mobile phones, digital cameras, VCRs, or office automation equipment, the PCB-Adhesive Polyimide Flexible PCB 0.15mm is designed to meet the demands of modern technology.


With its halogen-free and flame retardant properties, excellent flexibility, thermal resistance, and dimensional and electrical properties, this PCB ensures both safety and reliability. Additionally, its compliance with RoHS directive standards guarantees environmental friendliness and adherence to regulatory requirements.


The availability of this PCB worldwide, along with its compatibility with standard artwork and adherence to IPC-Class-2 standards, further enhances its appeal to a global market. Customers can trust in the quality and performance of this PCB, backed by our commitment to 100% electrical testing before shipment.


To learn more or discuss specific technical requirements, please contact Jane at sales20@bichengpcb.com. Our dedicated sales team is ready to provide personalized assistance and support.


In conclusion, the Adhesive Polyimide Flexible PCB 0.15mm is a game-changer in the world of flexible PCBs. Its exceptional features, reliability, and suitability for various applications make it a go-to choice for designers and engineers seeking high-performance solutions. Embrace the future of electronics with this revolutionary PCB.
