Exploring the Advanced Features and Benefits of Our Newly Shipped 30mil RO4835 High-Quality 2-Layer Rigid PCB

  • August 08. 2023
Experience superior performance and reliability with our recently shipped PCB. Meticulously crafted using advanced materials, this 2-layer rigid 30mil Rogers RO4835 PCB has been designed to meet the most demanding electronic requirements. Below are the key features and specifications of our exceptional product:

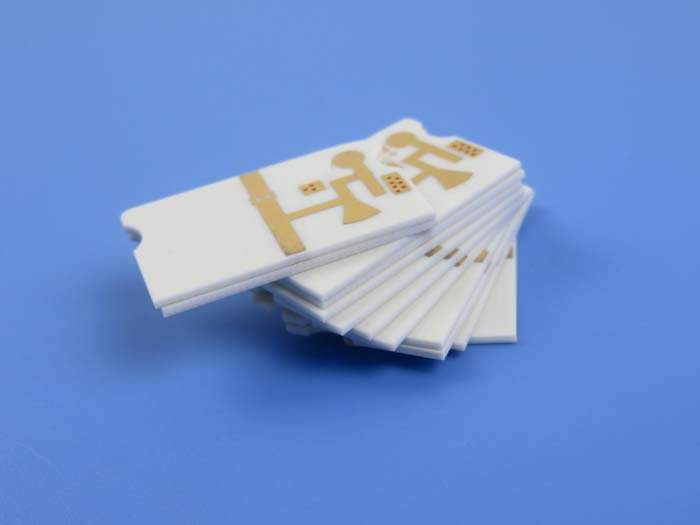

2-layer rigid 30mil Rogers RO4835 PCB


1. PCB Material:

- Made from RO4835 Hydrocarbon / Ceramic / Woven Glass with a DK (Dielectric Constant) of 3.48

- Processed using a lead-free method, ensuring environmental friendliness

- Capable of operating within a wide temperature range of -40℃ to +85℃.


2. Stackup:

- Consists of finished copper layers with a thickness of 35um

- Employs a RO4835 dielectric layer measuring 30 mil (0.762mm) in thickness

- Designed to optimize signal integrity and reliability through layered construction.


3. Construction Details:

- Board dimensions: 97.95mm x 72.17mm, offering a compact and efficient design (1 PCS, +/- 0.15mm)

- Minimum Trace/Space: 4/5 mils, allowing for intricate circuitry

- Minimum Hole Size: 0.5mm, accommodating a variety of components

- Does not include blind or buried vias, simplifying the manufacturing process

- Finished board thickness: 0.8mm, striking a balance between durability and flexibility

- Finished Cu weight: 1 oz (1.4 mils) all layers, ensuring optimal conductivity

- Via plating thickness: 1 mil, guaranteeing reliable connections

- Surface finish: Immersion Gold, which provides excellent corrosion resistance and solderability

- Features Green top and bottom Solder Masks, offering enhanced protection and aesthetics

- Does not include silkscreen on solder pads, preventing interference with component placement

- 100% Electrical test utilized to ensure the highest quality standards

- 0.5mm vias filled with resin and capped as per IPC-4761 Type VII, maximizing reliability.


4. PCB Statistics:

- Components: 38, facilitating the realization of complex circuit designs

- Total Pads: 59, providing numerous connection points for components

- Thru Hole Pads: 31, enabling versatile component mounting options

- Top SMT Pads: 28, allowing for surface mount technology for efficient assembly

- Bottom SMT Pads: 0, ensuring a clean and simplified bottom layer

- Vias: 32, facilitating seamless connections between layers

- Nets: 4, streamlining efficient signal routing.


5. Artwork Format: Gerber RS-274-X, ensuring compatibility with standard design tools.

6. Accepted Standard: IPC-Class-2, conforming to industry-recognized quality standards.

7. Service Area: Our services are available worldwide, ensuring accessibility and reliability.

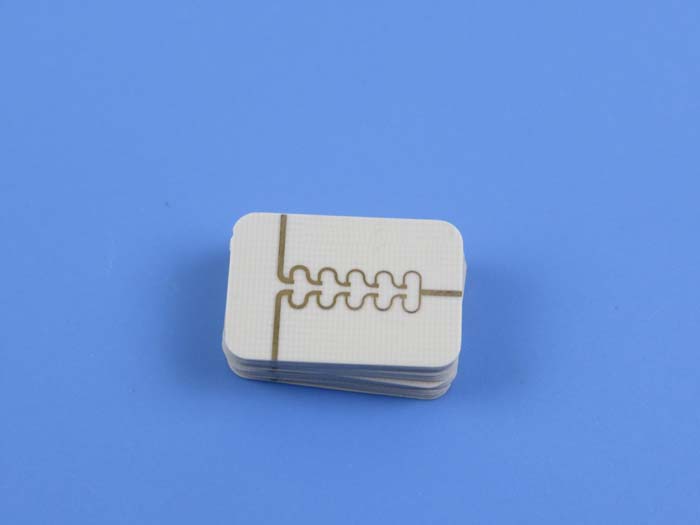

30mil Rogers RO4835 PCB


Unleashing the Power of RO4835: A Deep Dive into Our High-Quality 2-Layer Rigid PCB

Are you ready to take your electronic designs to the next level? Look no further! We are thrilled to introduce our latest innovation, the 30mil Rogers RO4835 PCB. With its exceptional performance and advanced features, this PCB is set to revolutionize the electronics industry. In this article, we will explore the key features, specifications, and benefits of our RO4835 PCB, providing you with valuable insights into why it's the ultimate choice for your electronic projects.


Introduction to RO4835: A Breakthrough in PCB Technology

The 30mil RO4835 material PCB represents a significant milestone in PCB technology, offering unmatched quality and reliability. Crafted with precision using advanced materials, this 2-layer rigid PCB is designed to meet the most demanding electronic requirements. Its introduction ushers in a new era of electronic design possibilities.


Exploring the Key Features and Specifications of RO4835 PCB

Let's delve into the impressive features and specifications that make the30milRO4835substratePCB stand out from the crowd. This high-quality PCB is made from RO4835 Hydrocarbon/Ceramic/Woven Glass, ensuring exceptional performance. With a dielectric constant of 3.48±0.05, it guarantees unmatched signal integrity, providing a solid foundation for your circuit designs.


Understanding the Dielectric Constant of RO4835: Unmatched Signal Integrity

One of the defining characteristics of the RO4835 PCB is its remarkable dielectric constant. With a dielectric constant of 3.48, this PCB ensures efficient signal transmission and minimal loss, enabling your circuits to operate at their highest potential. Say goodbye to signal degradation and embrace the exceptional signal integrity offered by RO4835.


Dissipation Factor and Thermal Coefficient of RO4835: Ensuring Efficient Performance

Efficient performance is a top priority for any electronic project, and the RO4835 PCB delivers just that. With a dissipation factor of 0.0037 and a thermal coefficient of +50 ppm/℃, this PCB remains stable even in challenging environments. It effectively dissipates heat, ensuring optimal performance and reliability.


Electrical and Mechanical Strength: The Reliability of RO4835 PCB

Reliability is paramount when it comes to PCBs, and the RO4835 excels in this aspect. It boasts impressive electrical and mechanical strength, with an electrical strength of 30.2 Kv/mm and a tensile strength of 136 MPa. These robust characteristics ensure the longevity and durability of your electronic designs.


Dimensional Stability and Thermal Expansion: Consistency in Challenging Environments

In demanding environments, dimensional stability becomes crucial. The RO4835 PCB performs admirably in this regard, with a dimensional stability of less than 0.5 mm/m. Additionally, its coefficient of thermal expansion of 10 ppm/℃ ensures consistency even when exposed to extreme temperature variations. Say goodbye to warping or distortion and embrace the stability offered by RO4835.


Tg and Td: Heat Resistance and Stability of RO4835 PCB

Heat resistance and stability are key factors for PCBs operating in elevated temperatures. The RO4835 PCB excels in this area, with a glass transition temperature (Tg) exceeding 280℃. It also showcases a decomposition temperature (Td) of 390℃, ensuring optimal performance and reliability even in high-temperature environments.


Thermal Conductivity: Efficient Heat Dissipation for Optimal Performance

Efficient heat dissipation is crucial for maintaining the performance and longevity of electronic components. The RO4835 PCB features a thermal conductivity of 0.66 W/m/oK, ensuring effective heat transfer and dissipation. This helps to prevent overheating and ensures your electronic designs remain cool under demanding conditions.


Moisture Absorption and Flammability: Ensuring Safety and Durability

Safety and durability are paramount in the world of electronics. The RO4835 PCB exhibits excellent moisture absorption properties, with a moisture absorption rate of only 0.05%. Furthermore, it is awarded a flammability rating of V-0, providing peace of mind and ensuring the safety of your electronic projects.


Lead-Free Process Compatibility: Environmentally Friendly Manufacturing with RO4835

At our core, we prioritize environmentally friendly practices. The Rogers RO4835 PCB, with its lead-free process compatibility, aligns perfectly with our commitment to sustainability. You can have confidence in using this PCB, knowing that it is manufactured with environmentally conscious processes.


Conclusion: Embrace the Power of RO4835 for Unparalleled Performance

In conclusion, the 30mil RO4835 high-quality 2-layer rigid PCB is a game-changerin the world of electronics. With its unmatched signal integrity, efficient performance, reliability, dimensional stability, and heat resistance,itsets a new standard for electronic designs. Whether you're working on high-frequency applications, aerospace projects, or any other demanding electronic endeavor, the RO4835 PCB is the ultimate choice.

Experience unparalleled performance and elevate your circuit designs with the power of RO4835. Revolutionize the way you approach electronics and unlock a world of possibilities with this state-of-the-art 2-layer rigid PCB. Trust in its exceptional quality, reliability, and advanced features to take your electronic projects to new heights.

Embrace the future of electronics with the RO4835 rigid PCB. It's time to unleash the power of RO4835 and transform your electronic designs into extraordinary creations.


For any technical inquiries or further assistance, please do not hesitate to contact Jane at sales20@bichengpcb.com. Our dedicated team is ready to provide comprehensive support and deliver optimal solutions for your electronic projects.
