The RF-60TC PCB 5mil is a cutting-edge, high-performance printed circuit board specifically designed for high-power RF and microwave applications.
Item NO.:
BIC-236-v301.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

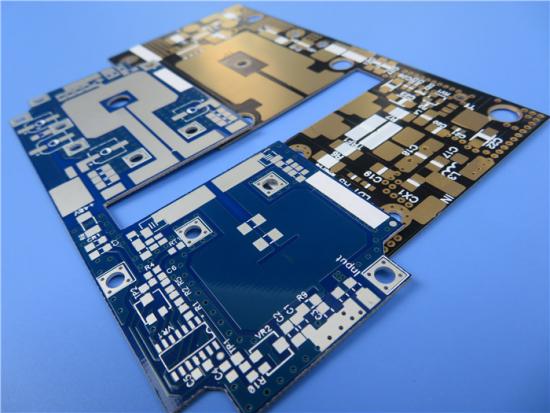

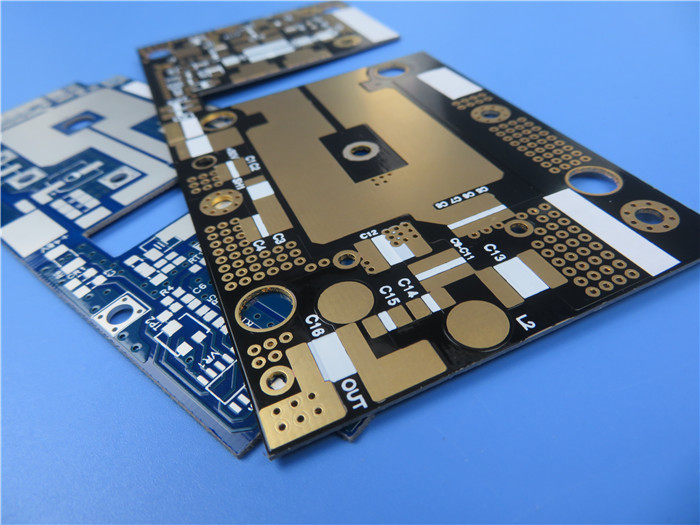

RF-60TC PCB Taconic 5mil Substrate 2-layer High Frequency Circuit Board
Introduction
The RF-60TC PCB 5mil is a cutting-edge, high-performance printed circuit board specifically designed for high-power RF and microwave applications. Leveraging the advanced RF-60TC high-frequency material, this PCB offers exceptional thermal conductivity, improved dielectric heat dissipation, and minimal dielectric losses. With its unique features and benefits, theRF-60TC PCB 5mil sets a new standard in performance, reliability, and efficiency for a wide range of applications.
Features
Glass Reinforced PTFE Ceramic Composites:
The RF-60TC PCB integrates glass reinforced PTFE ceramic composites, which provide superior mechanical strength and dimensional stability. This ensures the integrity and durability of the PCB, even in demanding environments.
Dielectric Constant (Dk) of 6.15 at 10 GHz:
With a Dk of 6.15 at 10 GHz, theRF-60TC PCB offers excellent signal integrity and impedance control. This enables precise transmission and reception of high-frequency signals, resulting in enhanced performance and minimal signal loss.
Dissipation Factor of 0.002 at 10 GHz/23°C:
The low dissipation factor of theRF-60TC PCB ensures efficient signal transmission with minimal energy loss. This feature guarantees high signal fidelity and superior system performance.
Thermal Coefficient of Dk of -3.58 ppm/°C during -50°C to 150°C:
The RF-60TC PCB exhibits exceptional thermal stability across a wide temperature range. Its low thermal coefficient of Dk ensures consistent electrical performance, regardless of temperature variations.
Low Moisture Absorption of 0.03%:
With a remarkably low moisture absorption rate of 0.03%, theRF-60TC PCB maintains its electrical and mechanical properties, even in humid environments. This feature enhances the longevity and reliability of the PCB.
High Thermal Conductivity:
The RF-60TC PCB boasts high thermal conductivity, with values of 0.9 W/MK (unclad), 1.0 W/MK (0.5oz), and 1.05 W/MK (1oz). This exceptional thermal management capability enables efficient heat dissipation, reducing operating temperatures and improving overall system performance.
CTE X-axis, Y-axis of 9.9 ppm/°C and 40 ppm/°C of Z-axis:
The RF-60TC PCB exhibits low coefficients of thermal expansion (CTE) in both the X-axis and Y-axis (9.9 ppm/°C) and the Z-axis (40 ppm/°C). This ensures dimensional stability, allowing for the construction of high-layer count multilayer PCBs without compromising reliability.
Benefits
Improved Loss Tangent:
By minimizing dielectric losses, theRF-60TC PCB significantly reduces signal attenuation. This improvement in loss tangent translates into enhanced signal quality, increased power efficiency, and improved system performance.
High Thermal Conductivity:
The high thermal conductivity of theRF-60TC PCB enables efficient heat dissipation, preventing excessive temperature rise in high-power applications. This feature extends the lifetime of active components and enhances long-term reliability.
Enhanced Dimensional Stability:
With improved dimensional stability, theRF-60TC PCB offers precise and reliable interconnection between components. This stability is crucial for applications requiring tight tolerances and high accuracy.
Low Z-Axis CTE of 40 ppm/°C:
The low Z-axis CTE of theRF-60TC PCB ensures minimal stress-induced failures during thermal cycling. This feature enhances reliability and minimizes the risk of interconnect failures in demanding environments.
Excellent Adhesion to Metal:
TheRF-60TC PCB exhibits excellent adhesion properties to low-profile and reverse treated copper, resulting in reduced insertion loss. This feature enhances signal integrity and optimizes system performance.
Stable DK Over Frequency and Temperature:
TheRF-60TC PCB maintains a stable dielectric constant over a wide frequency and temperature range. This stability ensures consistent electrical performance and reliable signal transmission under varying operating conditions.
Low Moisture Absorption:
The RF-60TC PCB 's low moisture absorption rate guarantees the retention of its electrical and mechanical properties, even in humid environments. This feature is essential for applications requiring long-term reliability and performance.
PCB Construction Details
The 2-layer RF-60TC PCB 5mil is a rigid PCB with the following specifications:
Item |
Specification |
Board dimensions |
54.19mm x 34.47mm |
Tolerance: +/- 0.15mm |
|
Minimum Trace/Space |
5/6 mils |
Minimum Hole Size |
0.30mm |
Blind vias |
None |
Finished board thickness |
0.25mm |
Finished Cu weight |
1 oz (1.4 mils) |
Via plating thickness |
20 μm |
Surface finish |
Immersion Gold |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
100% Electrical test |
Yes |
PCB Statistics
RF-60TC PCB 5mil features the following statistics:
Item |
Quantity |
Components |
14 |
Total Pads |
32 |
Thru Hole Pads |
21 |
Top SMT Pads |
11 |
Bottom SMT Pads |
0 |
Vias |
21 |
Nets |
3 |
Type of artwork supplied
Gerber RS-274-X, ensuring compatibility with standard PCB manufacturing processes.
Accepted standard
IPC-Class-2, meeting industry-standard quality and reliability criteria.
Availability
worldwide, ensuring accessibility and global distribution.
Some Typical Applications
The Taconic RF-60TC PCB 5mil finds extensive use in various high-frequency applications, including but not limited to:
1.High Power Amplifiers:
The exceptional thermal management and low loss tangent of the RF-60TC PCB 5mil make it an ideal choice for high-power amplifiers. It ensures efficient heat dissipation, reduces power losses, and enhances overall amplifier performance.
2.Miniaturized Antennas:
With its high dielectric constant, dimensional stability, and low moisture absorption, theRF-60TC PCB 5mil is well-suited for miniaturized antenna designs. It enables precise signal transmission, improved antenna efficiency, and miniaturization of wireless devices.
3.GPS, Patch, RFID Reader:
TheRF-60TC PCB 5mil's high thermal conductivity and stable dielectric constant make it suitable for GPS, patch antennas, and RFID reader applications. It ensures reliable signal reception and transmission, resulting in accurate positioning and efficient data transfer.
4.Filters, Couplers & Dividers:
TheRF-60TC PCB 5mil's low loss tangent and stable dielectric constant make it an excellent choice for filters, couplers, and dividers. It enables precise signal filtering, efficient power distribution, and optimal signal division in RF and microwave systems.
5.Satellites:
Due to its high thermal conductivity, dimensional stability, and moisture resistance, theRF-60TC PCB 5mil is well-suited for satellite applications. It ensures reliable signal transmission, withstands harsh environmental conditions, and contributes to the overall performance and longevity of satellite systems.
In conclusion, the RF-60TC 5mils ubstrate PCB represents a significant advancement in high-frequency PCB technology. With its exceptional thermal conductivity, improved dielectric heat dissipation, and minimal dielectric losses, it offers unparalleled performance, reliability, and efficiency for high-power RF and microwave applications. Whether in high-power amplifiers, miniaturized antennas, or satellite systems, the Taconic RF-60TC PCB 5mil sets the benchmark for excellence, enabling engineers to push the boundaries of high-frequency design and achieve optimal system performance.
