Introduction

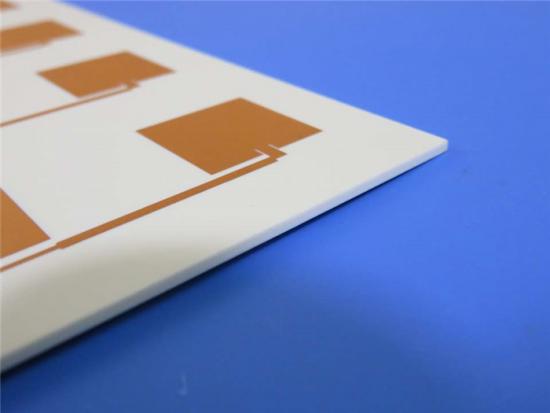

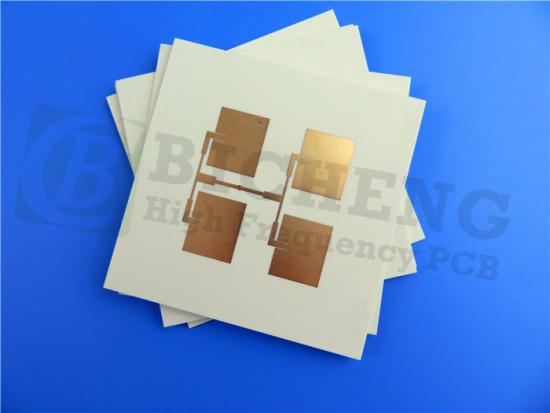

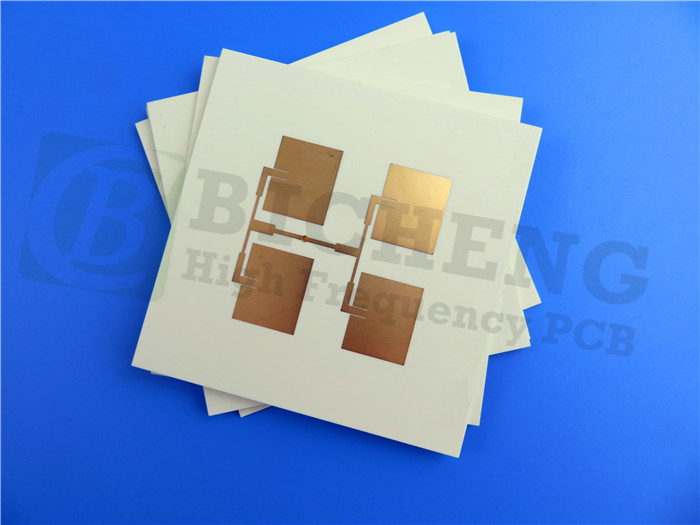

The RO4725JXR PCB, a cutting-edge creation in the realm of antenna grade laminates, redefines excellence with its Rogers RO4725JXR Hydrocarbon / Ceramic / Woven Glass composition. Offering a dependable and cost-effective alternative to traditional PTFE-based laminates, this innovative material empowers designers to achieve optimal antenna performance without compromising on quality.

Features

1)Dielectric Constant & Dissipation Factor:

With a Dielectric Constant (Dk) of 2.55 +/- 0.05 at 10GHz/23°C and a Dissipation Factor (Df) of 0.0026 at 10GHz/23°C, 0.0022 at 2.5GHz, this PCB ensures exceptional signal integrity.

2)Thermal Stability:

Boasting an excellent Thermal Coefficient of Dielectric Constant (+34 ppm/°C) and a high glass transition temperature (Tg) exceeding 280°C, the RO4725JXR 30.7mil substrate PCB excels in maintaining stability under varying conditions.

3)CTE Matching & PIM Performance:

With a Coefficient of Thermal Expansion (CTE) matched to copper on all axes and an unparalleled Passive Inter-Modulation (PIM) value of -166 dBC, this PCB guarantees reliability in performance.

Benefits

1)Low Loss Dielectric:

Equipped with a low loss dielectric and low profile foil, the RO4725JXR high-frequency printed boards ensures minimal signal loss, maximizing efficiency.

2)Dk Optimization:

The Dielectric Constant (Dk) is precisely matched to standard PTFE-based offerings, facilitating seamless integration into existing designs.

3)Enhanced Performance:

Reduced passive inter-modulation, low insertion loss, and consistent circuit performance elevate the operational efficiency of this laminate.

PCB Stackup & Construction

Layer Configuration:

2-layer rigid PCB with Copper_layer_1 (35 μm), Rogers RO4725JXR Core (0.78 mm/30.7mil), and Copper_layer_2 (35 μm).

Board Specifications:

PCB Statistics

Availability & Applications

Global Reach:

 Available worldwide, the RO4725JXR Rogers PCB caters to a diverse clientele seeking superior performance and reliability.

Applications:

Ideal for Cellular Base Station Antennas and a myriad of other telecommunications applications, this high frequency PCB is a versatile solution for varied industry needs.

Conclusion

In conclusion, the RO4725JXR PCB 30.7mil stands as a pinnacle of innovation in antenna grade laminates, embodying unparalleled quality, performance, and reliability. Designed to exceed expectations and meet the demands of modern connectivity challenges, this product is a testament to excellence in PCB manufacturing and design.
