RO3003G2 PCB is a 2-layer rigid PCB with a stackup consisting of a 10 mil (0.254mm) thick RO3003G2 dielectric material.
Item NO.:
BIC-224-v275.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

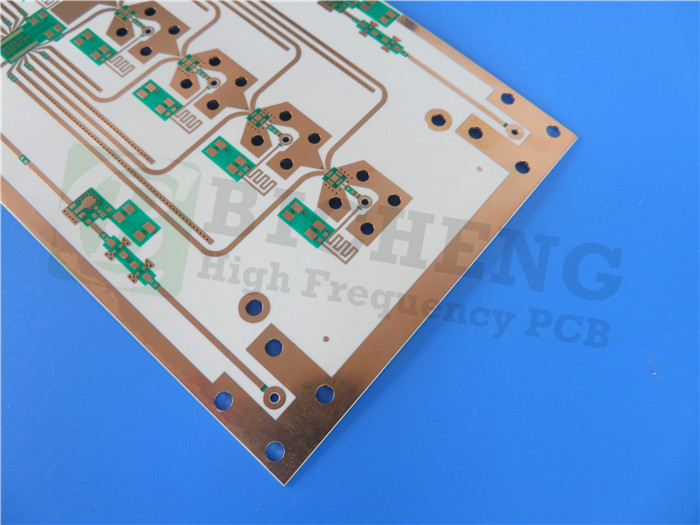

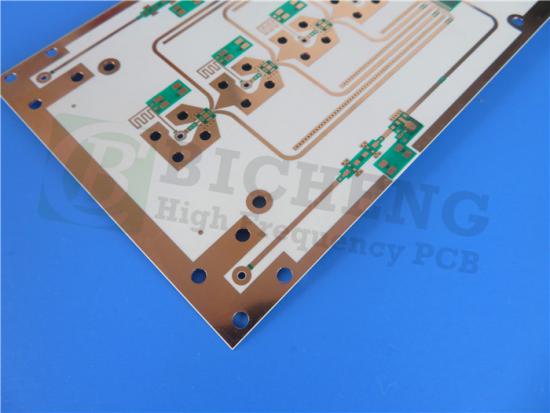

RO3003G2 High Frequency PCB Built on 10mil 0.254mm substrates with Immersion Gold
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Brief Introduction
This PCB is a 2-layer rigid PCB with a stackup consisting of a 10 mil 0.254mm thick RO3003G2 dielectric material and features a finished copper weight of 35um on both sides.
The RO3003G2 high frequency PCB measures 170mm x 90mm with a tolerance of +/- 0.15mm and the minimum trace width and spacing are 4 mils (0.1mm). The overall thickness of the finished board is 0.3mm. The via plating thickness is 20um, and the surface finish is immersion gold. The top silkscreen is white, while there is no silkscreen on the bottom side. The top solder mask is green, and there is no solder mask on the bottom side.
The 10mil RO3003G2 substrate PCB consists of 25 components and a total of 93 pads. Among these, 62 pads are dedicated to through-hole components, while 31 pads are surface-mount technology (SMT) pads located on the top side. The bottom side does not have any SMT pads. Additionally, there are 98 vias and 6 nets (connections) on the PCB. Each PCB undergoes a 100% electrical test to ensure full functionality before shipment.
PCB Specifications
PCB SIZE | 170 x 90mm=1up |
BOARD TYPE | Double sided PCB |
Number of Layers | 2 layers |
Surface Mount Components | YES |
Through Hole Components | NO |
LAYER STACKUP | copper ------- 18um(0.5 oz)+plate TOP layer |
RO3003G2 0.254mm | |
copper ------- 18um(0.5oz) + plate BOT Layer | |
TECHNOLOGY | |
Minimum Trace and Space: | 4 mil / 4 mil |
Minimum / Maximum Holes: | 0.3 mm / 1.5 mm |
Number of Different Holes: | 12 |
Number of Drill Holes: | 62 |
Number of Milled Slots: | 0 |
Number of Internal Cutouts: | 0 |
Impedance Control: | no |
Number of Gold finger: | 0 |
BOARD MATERIAL | |
Ceramic-filled PTFE | RO3003G2 |
Final foil external: | 1.0 oz |
Final foil internal: | N/A |
Final height of PCB: | 0.3 mm ±0.1 |
PLATING AND COATING | |
Surface Finish | Immersion gold, 36% |
Solder Mask Apply To: | Top Side |
Solder Mask Color: | Green |
Solder Mask Type: | Photo-Sensitive-Solder Mask |
CONTOUR/CUTTING | Routing |
MARKING | |
Side of Component Legend | Top Side |
Colour of Component Legend | White |
Manufacturer Name or Logo: | N/A |
VIA | Plated through hole(PTH), minimum size 0.3mm. |
FLAMIBILITY RATING | 94 V0 |
DIMENSION TOLERANCE | |
Outline dimension: | 0.0059" |
Board plating: | 0.0029" |
Drill tolerance: | 0.002" |
TEST | 100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA | Worldwide, Globally. |
TypicalApplications
1. Adaptive cruise control
2. Forward collision warning
3. Active brake assist
4. Lane change assist
5. Traffic jam pilot
6. Parking pilot
7. Blind spot detection
Available RFPCB Material
RO4350B, RO4003C, RO4725JXR, RO4730G3, RO4360G2, RO4533, RO4534, RO4535, RO4830, RO4835, RO3003, RO3006, RO3010, RO3035, RO3203, RO3210; RT/Duriod 5880; RT/Duriod 5870, RT/Duriod 6002, RT/duroid 6006, RT/Duroid 6010.2LM, RT/duroid 6035HTC; RT/duroid 5880LZ, RT/duroid 6202; TMM3, TMM4, TMM6, TMM10, TMM10i, TMM13i, Kappa 438; AD250C, AD255C, AD300D, AD350A, AD450, AD600, AD1000, TC350; TC600; DiClad 880, DiClad 870, DiClad 527; IsoClad 917, IsoClad 933; CLTE-XT, CLTE-AT, CLTE-MW; CuClad 217, CuClad 233, CuClad 250.
TLF-35; RF-35TC, RF-60A, RF-60TC, RF-35A2,RF-30, RF-35, RF-45, RF-10, TRF-45; TLX-0, TLX-6, TLX-7, TLX-8; TLX-9, TLY-3, TLY-5, TLY-5Z; CER-10; TSM-DS3
F4BM217, F4BM220, F4BM233, F4BM245, F4BM255, F4BM265, F4BM275, F4BM294, F4BM300;
F4BME217, F4BME220, F4BME233, F4BME245, F4BME255, F4BME265, F4BME275, F4BME294, F4BME300;
F4BTM298, F4BTM300, F4BTM320, F4BTM350;
F4BTME298, F4BTME300, F4BTME320, F4BTME350;
TP300, TP440, TP600, TP615, TP960, TP1020, TP1100, TP1600, TP2000, TP2200, TP2500;
TF300, TF440, TF600, TF960, TF1020, TF1600;
F4BTMS220, F4BTMS233, F4BTMS255, F4BTMS265, F4BTMS294, F4BTMS300, F4BTMS350, F4BTMS430, F4BTMS450, F4BTMS615, F4BTMS1000;
TFA294, TFA300, TFA615, TFA1020;
WL-CT300, WL-CT330, WL-CT330Z, WL-CT338, WL-CT350, WL-CT440, WL-CT615.
Dielectric constant ranges DK2.2 DK2.65 DK2.85 DK2.94, DK3.0, DK3.2, DK3.38, DK3.5, DK4.0, DK4.4, DK6.15, DK10.2
Our PCBS ervices
PCB prototypes
Mass volume production
Single sided PCB
Double sided PCB
Multilayer PCB up to 32 layers
Heavycopper PCB
Hybrid PCB
Impedancecontrolled PCB
Via in pad PCB
Ball grid array (BGA) PCB
Blind via PCB
Resin-filled via
Copper-filled via
Edge plated boards
Countersink holes, half hole, press-fit hole
Quick turn-around (QTA) Delivery
No Minimum Order Quantity (MOQ)
Door to Door shipment service
CAPABILITY
2500-3000types each month.
SERVICE AREA
North America, Oceania, Southeast Asia, Eastern Europe, Africa, Latin America, Western & Southern Europe, Northern Europe, Central & South Asian, Middle East.
