Rogers RO4533 laminates represent a breakthrough in antenna-grade materials, offering exceptional performance and reliability for mobile infrastructure microstrip antenna applications.
Item NO.:
BIC-246-v311.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

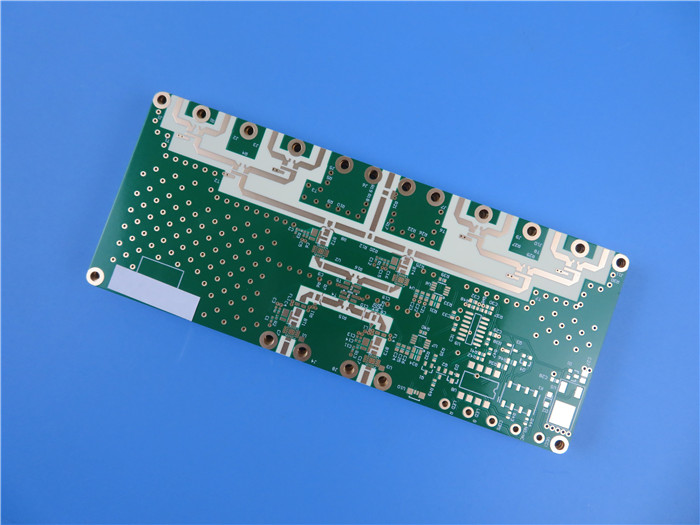

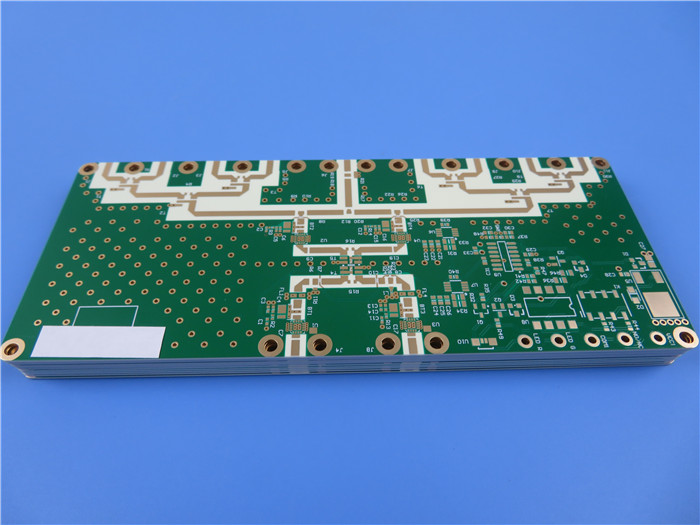

Rogers RO4533 30mil High Frequency Laminates PCB with Immersion Silver
Introduction
Rogers RO4533 laminates represent a breakthrough in antenna-grade materials, offering exceptional performance and reliability for mobile infrastructure microstrip antenna applications. These ceramic-filled, glass-reinforced hydrocarbon laminates provide controlled dielectric constant, low loss performance, and outstanding passive intermodulation (PIM) response. With their compatibility with conventional FR-4 and high-temperature lead-free solder processing, they offer a cost-effective alternative to traditional PTFE antenna technologies while allowing designers to optimize antenna price and performance.RO4533 30mil laminates are also available in halogen-free variants, meeting the most stringent "green" standards.
Features
The RO4533 high frequency laminates boast an impressive set of features that contribute to their superior performance:
1)Dielectric Constant (DK) of 3.3 at 10GHz:
The controlled dielectric constant ensures consistent electrical performance, enabling designers to achieve precise antenna characteristics.
2)Dissipation Factor (DF) of 0.0025 at 10GHz:
The low loss tangent minimizes signal loss, resulting in improved overall antenna efficiency.
3)Coefficients of Thermal Expansion (CTEs):
The X and Y direction CTEs, similar to that of copper, reduce stresses in the printed circuit board antenna, enhancing its reliability and lifespan. The Z-axis CTE is also low, ensuring excellent plated through-hole reliability.
4)Glass Transition Temperature (Tg) exceeding 280°C (536°F):
The high Tg value contributes to the low z-axis CTE and provides exceptional dimensional stability, even in extreme temperature environments.
5)Low Moisture Absorption:
With a moisture absorption rate of only 0.02%, the RO4533 laminates maintain their electrical and mechanical properties, ensuring consistent performance over time.
6)Thermal Conductivity of 0.6 W/mK:
The high thermal conductivity of RO4533 laminates allows for improved power handling capability, making them suitable for high-power antenna applications.
Benefits
RO4533 PCBs offer a range of benefits that make them an ideal choice for antenna design:
1)Low Loss, Low Dk, and Low PIM Response:
These low loss laminates deliver excellent electrical properties, resulting in minimal signal loss, precise antenna performance, and reduced intermodulation distortion.
2)Compatibility with Standard PCB Fabrication:
The thermoset resin system of RO4533 laminates is fully compatible with standard PCB fabrication processes, simplifying integration into existing manufacturing workflows.
3)Excellent Dimensional Stability:
The laminates exhibit exceptional dimensional stability, ensuring greater yield on larger panel sizes and maintaining mechanical form during handling and assembly.
4)Uniform Mechanical Properties:
The laminates offer uniform mechanical properties, providing consistent performance across the entire antenna structure.
5)High Thermal Conductivity:
The enhanced thermal conductivity of RO4533PCBs enables improved power handling, reducing the risk of overheating and ensuring reliable operation.
RO4533PCB Stackup
2-layer rigid PCB
Copper_layer_1 - 35 μm
Rogers 4533 Core - 0.762 mm (30mil)
Copper_layer_2 - 35 μm
PCB Construction Details
The RO4533 PCB is a 2-layer wholesale rigid PCB with the following construction details:
Parameter |
Value |
Board dimensions |
85.89mm x 161.45mm (1PCS) |
Tolerance |
+/- 0.15mm |
Minimum Trace/Space |
4/6 mils |
Minimum Hole Size |
0.3mm |
Blind Vias |
None |
Finished board thickness |
0.8mm |
Finished Cu weight |
1oz (1.4 mils) outer layers |
Via plating thickness |
20 μm |
Surface finish |
Immersion Silver |
Top Silkscreen |
White |
Bottom Silkscreen |
None |
Top Solder Mask |
Green |
Bottom Solder Mask |
None |
Electrical Test |
100% prior to shipment |
PCB Statistics
Parameter |
Value |
Components |
57 |
Total Pads |
137 |
Thru Hole Pads |
92 |
Top SMT Pads |
45 |
Bottom SMT Pads |
0 |
Vias |
102 |
Nets |
3 |
Artwork and Quality Standards
The PCB artwork is supplied in Gerber RS-274-X format, a widely accepted standard for PCB fabrication. The RO4533 high frequency material PCB adheres to IPC-Class-2 quality standards, guaranteeing superior workmanship and reliability.
Availability
The RO4533 Rogers board PCB is available worldwide, ensuring accessibility for customers around the globe.
Typical Applications
RO4533 Rogers substrate PCB find extensive application in various antenna systems, including:
1.Cellular Infrastructure Base Station Antennas:
RO4533 laminates offer the performance and reliability required for base station antennas in cellular infrastructure. These antennas play a crucial role in providing reliable wireless communication for mobile networks.
2.WiMAX Antenna Networks:
WiMAX (Worldwide Interoperability for Microwave Access) networks utilize RO4533 laminates to enhance the performance of their antenna systems.
WiMAX technology enables high-speed wireless broadband connections over long distances, making it ideal for applications such as last-mile connectivity and rural broadband access.
Conclusion
In conclusion, the RO4533 30mil substrate PCB, with its advanced features and exceptional performance, is a game-changer in the field of antenna-grade laminates. Its compatibility with standard PCB fabrication processes, low loss characteristics, excellent dimensional stability, and high thermal conductivity make it an ideal choice for demanding applications in mobile infrastructure and wireless communication systems. With the Rogers RO4533 PCB, designers can achieve optimal antenna performance while ensuring cost-effectiveness and reliability.
