Home Newly Shipped RF PCB DiClad 880 PCB Rogers 60mil Substrate Printed Circuit Board With Immersion Gold

DiClad 880 PCB Rogers 60mil Substrate Printed Circuit Board With Immersion Gold


With its superior electrical properties, dimensional stability, and numerous benefits, the DiClad 880 PCB 60milRogers laminates are the ideal choice for demanding electronic applications.











  • Item NO.:

    BIC-281-v347.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$2.9
  • Price Range:1 - 50/$99
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail




DiClad 880 PCB Rogers 60mil Substrate Printed Circuit Board With Immersion Gold



Introduction

Introducing the DiClad 880 PCB 60mil, a high-performance printed circuit board substrate specifically designed to meet the demanding requirements of modern electronic applications. Engineered by Rogers, a renowned leader in advanced materials technology, the DiClad 880 laminates excel in providing exceptional electrical properties, dimensional stability, and overall performance. With a lower dielectric constant and dissipation factor, this woven fiberglass reinforced PTFE-based composite offers superior performance in a wide range of applications. Let's delve deeper into the features, benefits, construction details, and typical applications of the DiClad 880 PCB.



Features

The Arlon DiClad 880 PCB boasts an impressive array of features that distinguish it as a superior choice for electronic designers and engineers:



2.1 Dielectric Constant (DK):

With a DK of 2.17 or 2.2 +/- 0.04 at 10 GHz/23°C and 1 MHz, the DiClad 880 ensures precise signal propagation, reducing the potential for signal distortion and loss.



2.2 Dissipation Factor:

The DiClad 880 exhibits an extraordinarily low dissipation factor. At 10 GHz/23°C, it achieves a dissipation factor of 0.0009, and at 1 MHz, it achieves a dissipation factor of 0.0008. This characteristic minimizes the loss of signal energy, contributing to higher overall system efficiency.



2.3 Temperature Coefficient of Dielectric Constant (TcDK):

The TcDK of -160 ppm/°C ranging from -10°C to 140°C ensures excellent stability across various environmental conditions, including temperature fluctuations.



2.4 Moisture Absorption:

This superior PCB substrate demonstrates a moisture absorption rate of just 0.02%, providing enhanced reliability and performance in humid environments.



2.5 Coefficient of Thermal Expansion (CTE):

The DiClad 880 exhibits exceptional dimensional stability with a CTE of 25 ppm/°C in the X-axis, 34 ppm/°C in the Y-axis, and 252 ppm/°C in the Z-axis. This characteristic ensures the integrity and reliability of the PCB, reducing the risk of failure due to thermal stress.



2.6 Flammability:

The DiClad 880 PCB complies with UL 94-V0 flammability standards, offering peace of mind and enhanced safety in applications where fire resistance is essential.

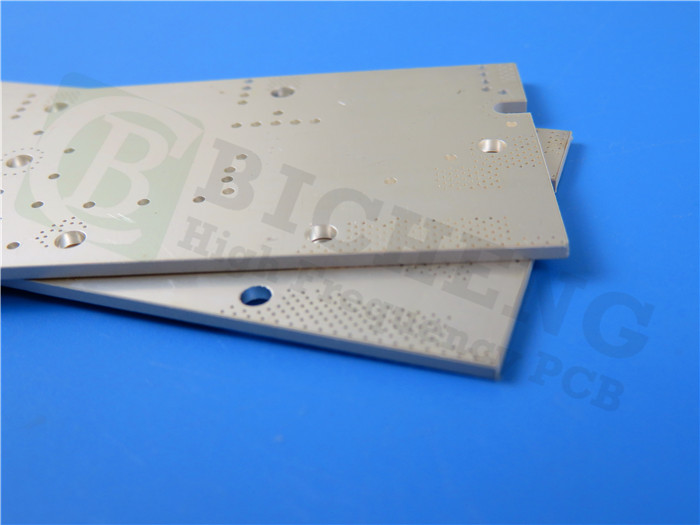

Arlon DiClad 880



Benefits:

Utilizing the DiClad 880 PCB in your electronic designs comes with a plethora of benefits that elevate your product's performance and reliability:



3.1 Extremely Low Loss Tangent:

The DiClad 880's low loss tangent translates to minimal energy loss, enabling efficient signal transmission and superior electrical performance.



3.2 Excellent Dimensional Stability:

With woven fiberglass reinforcement and precise control of the fiberglass/PTFE ratio, the DiClad 880 ensures outstanding dimensional stability, reducing the potential for warping or distortion during manufacturing and operation.



3.3 Product Performance Uniformity:

Rogers' meticulous manufacturing processes ensure that each DiClad 880 PCB exhibits high performance uniformity, allowing for consistent and predictable results across production runs.



3.4 Electrical Properties Across Frequencies:

The electrical properties of the DiClad 880 remain highly uniform across a wide frequency range. This characteristic is vital for applications demanding reliable performance in different frequency bands.



3.5 Mechanical Performance:

The DiClad 880's mechanical performance is consistent, ensuring reliable operation even under demanding conditions. This stability contributes to increased product lifespan and reduced maintenance costs.



3.6 Excellent Chemical Resistance:

The DiClad 880 demonstrates outstanding resistance to a variety of chemicals, ensuring the PCB's integrity and longevity in environments that expose it to corrosive substances.



3.7 Lowest Moisture Absorption Among PTFE-based Composites:

With its exceptionally low moisture absorption rate of 0.02%, the DiClad 880 safeguards against moisture-related issues, such as degradation, delamination, and electrical performance degradation.



3.8 Stable DK Over a Wide Frequency Range:

The stable dielectric constant of the DiClad 880 across a broad frequency spectrum enables designers to implement wider line widths, reducing insertion loss and enhancing overall system performance.

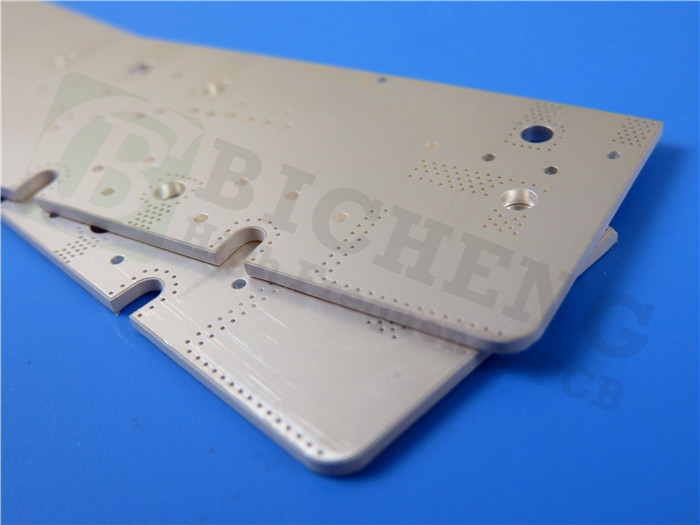

Diclad 880 PCB



PCB Stackup and Construction Details

The DiClad 880 high frequency laminate pcb board 60mil utilizes adouble layer circuit PCB stackup, offering a robust and reliable foundation for your electronic designs:



Copper Layer 1: 35μm (1.4 mils)

DiClad 880: 1.524 mm (60 mil)

Copper Layer 2: 35μm (1.4 mils)



Description

Value

Board Dimensions

70.28mm x 139.35mm= 1PCS, +/- 0.15mm

Minimum Trace/Space

5/8 mils

Minimum Hole Size

0.25mm

Blind Vias

No

Finished Board Thickness

0.8mm

Finished Cu Weight

1oz (1.4 mils) outer layers

Via Plating Thickness

20 μm

Surface Finish

Immersion Gold

Top Silkscreen

White

Bottom Silkscreen

No

Top Solder Mask

No

Bottom Solder Mask

No

Electrical Test

100% prior to shipment





PCB Statistics

Understanding the specifications and capabilities of the DiClad 880 PCB is essential. Here are some statistics that provide insights into its design flexibility and performance:



Description

Value

Components

37

Total Pads

92

Thru Hole Pads

57

Top SMT Pads

35

Bottom SMT Pads

0

Vias

73

Nets

3





Accepted Standard and Availability

The DiClad 880 high frequency circuit board adheres to the IPC-Class-2 standard, ensuring compliance with industry-accepted quality and reliability guidelines. Whether you are located in North America, Europe, Asia, or any other part of the world, the DiClad 880 PCB is available worldwide, facilitating easy integration into your global supply chain.



Typical Applications

The DiClad 880 PCB finds application in a wide range of industries and sectors, including:



Radar Feed Networks:

Commercial Phased Array Networks:

Low Loss Base Station Antennas:

Guidance Systems:

Digital Radio Antennas:

Filters, Couplers, LNAs:



Conclusion

With its superior electrical properties, dimensional stability, and numerous benefits, the DiClad 880 PCB 60mil Rogers laminates are the ideal choice for demanding electronic applications. It provides designers and engineers with the performance, reliability, and flexibility needed to meet the challenges of today's rapidly evolving technology landscape. Whether it's radar systems, phased array networks, base station antennas, guidance systems, or digital radio antennas, the DiClad 880 empowers your designs to excel. Choose the DiClad 880 PCB, and experience the pinnacle of performance and quality in printed circuit substrates.
