Rogers 4003C High Frequency Rigid PCB 20mil RO4003C Hydrocarbon Ceramic Laminates for RF Microwave Antenna

20mil Rogers RO4003 PCB offers excellent electrical performance, low loss, stable impedance control, and good thermal management.





  • Item NO.:

    BIC-N13-v219.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

    China
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail



Rogers 4003C High Frequency Rigid PCB 20mil RO4003C Hydrocarbon Ceramic Laminates for RF Microwave Antenna



Introducing our newly shipped PCB, the 20mil RO4003C Hydrocarbon Ceramic Laminates:

 With our lead-free process and -40℃ to +85℃ operation range, this 2-layer RO4003C rigid PCB offers exceptional performance and reliability. The RO4003C dielectric, with a thickness of 20mil, ensures excellent signal integrity and impedance control.

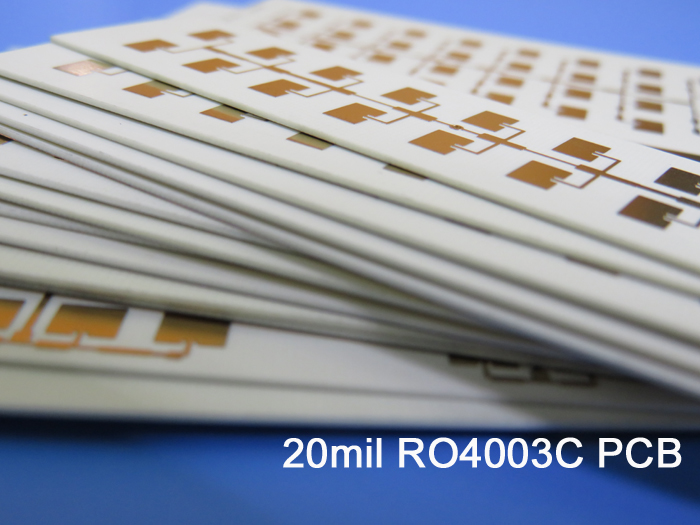

20mil RO4003C RF PCB



Here are the construction details:

Construction Details

Specifications

Board Dimensions

136mm x 96mm (±0.15mm)

Minimum Trace/Space

4/4 mils

Minimum Hole Size

0.2mm

Blind or Buried Vias

No

Finished Board Thickness

0.6mm

Finished Cu Weight

1.5 oz (2.1 mils) all layers

Via Plating Thickness

1 mil

Surface Finish

Electroless Nickel Immersion Gold (ENIG)

Slotted Holes

Plated through as per Gerber

Side-by-side holes define slot dimensions



Top Silkscreen

No

Bottom Silkscreen

No

Top Solder Mask

Green

Bottom Solder Mask

Green

Silkscreen on Solder Pads

No

Electrical Test

100%

0.2mm and 0.5mm Via Filling

Resin and capped as per IPC-4761 Type VII





Our PCB statistics showcase its versatility:

PCB Statistics

Quantity

Components

96

Total Pads

128

Thru Hole Pads

54

Top SMT Pads

72

Bottom SMT Pads

0

Vias

153

Nets

18





Material: The 20mil RO4003C material PCB is made from a high-frequency laminate material called RO4003C. It is specifically designed for applications that require excellent electrical performance and signal integrity at high frequencies.



Thickness: The PCB has a thickness of 20 mils (0.508 mm). The thin profile makes it suitable for applications that require compact and lightweight designs, while still maintaining the necessary electrical performance.



Dielectric Constant: RO4003C has a low and stable dielectric constant of around 3.38 to 3.44, depending on the specific grade. This allows for accurate control of impedance and signal integrity in high-frequency circuits.



Loss Tangent: The RO4003CPCB material has a low loss tangent, typically ranging from 0.0017 to 0.0025, which ensures minimal signal loss and low insertion loss in high-frequency applications.



Copper Foil: The copper foil used in the RO4003CPCB can be specified with different weights, typically ranging from 1 oz (35 µm) to 2 oz (70 µm). The choice of copper weight depends on the specific application and the desired level of conductivity and thermal dissipation.



Thermal Conductivity: RO4003C has good thermal conductivity, allowing for efficient heat dissipation in high-power applications. This helps in maintaining the stability and reliability of the PCB.



Applications: The 20mil Rogers 4003C PCB is commonly used in high-frequency applications such as RF and microwave circuits, base station antennas, power amplifiers, radar systems, satellite communication systems, and automotive electronics.



Manufacturing and Design: RO4003C PCBs are typically manufactured using standard FR-4 fabrication processes, making them easy to integrate into existing manufacturing workflows. The material can be easily machined, drilled, and assembled using standard techniques.



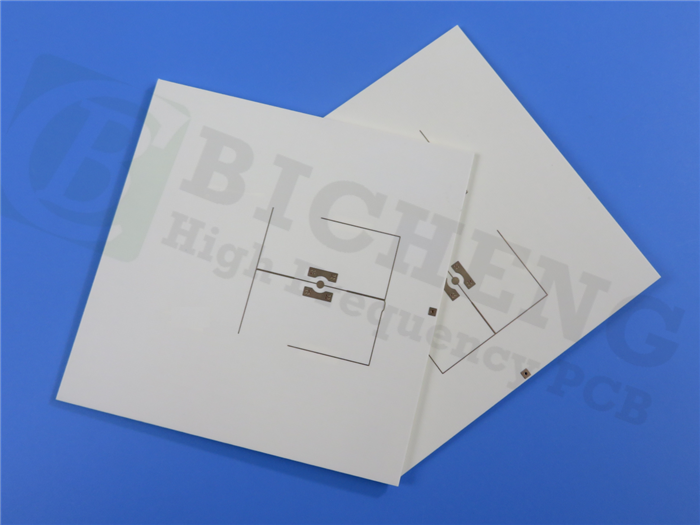

RO4003C Hydrocarbon Ceramic Laminates PCB

Overall, the 20mil Rogers 4003C PCB offers excellent electrical performance, low loss, and stable impedance control, making it well-suited for demanding high-frequency applications. If you have any specific questions or would like more information, feel free to ask!



We provide Gerber RS-274-X artwork and adhere to the IPC-Class-2 standard. Our services are available worldwide, and for any technical inquiries, please reach out to Jane at 20sales@bichengpcb.com.



Experience the exceptional performance and reliability of our RO4003C Hydrocarbon Ceramic Laminates PCB.
