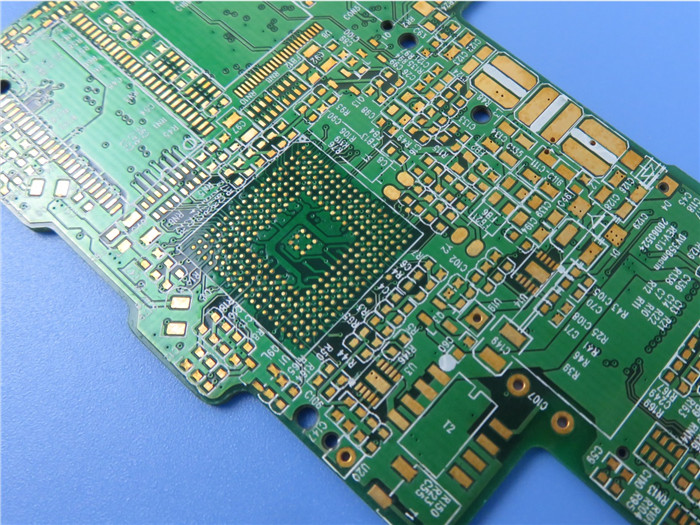

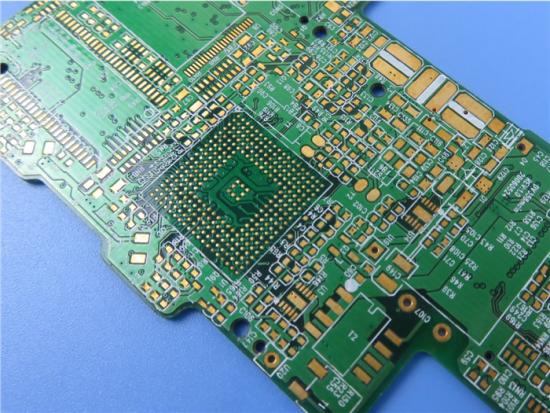

370HR PCB Isola 1.0mm 6-layer Multilayer Printed Circuit Board

370HR PCB Isola 1.0mm 6-layer Multilayer Printed Circuit Board

Introduction:

In the realm of multilayer Printed Circuit Board (PCB) applications, where thermal performance and reliability are paramount, the Isola 370HR laminates and prepregs emerge as a powerful solution. Developed with a patented high-performance 180°C HighTg FR-4 multifunctional epoxy resin system, the Isola 370HR PCB is engineered to deliver maximum thermal efficiency and exceptional durability. With its superior material properties and compatibility with FR-4 processes, this PCB is poised to revolutionize various industries. In this comprehensive blog post, we will delve into the features, benefits, construction details, statistics, and typical applications of the 370HR PCB 1.0mm.

370HR Introduction:

The 370HR laminates and prepregs are the result of Isola's innovative approach to PCB materials. Constructed with a high-quality E-glass glass fabric, these laminates exhibit superior resistance to Conductive Anodic Filament (CAF). Moreover, the patented epoxy resin system ensures exceptional thermal performance, low Coefficient of Thermal Expansion (CTE), and mechanical, chemical, and moisture resistance properties that surpass traditional FR-4 materials.

Features:

The 370HR PCB comes packed with an array of features that make it a compelling choice for demanding applications:

1.1 UL Certified: The PCB is UL certified, guaranteeing compliance with strict safety standards.

1.2 RoHS Compliant: It adheres to the Restriction of Hazardous Substances (RoHS) directive, ensuring environmentally friendly manufacturing.

1.3 CAF Resistant: The PCB's design incorporates measures to resist Conductive Anodic Filament formation, enhancing its lifespan.

1.4 Glass Transition Temperature (Tg): With a Tg of 180°C, this PCB can withstand elevated temperatures without compromising its performance.

1.5 Decomposition Temperature (Td): The PCB exhibits a decomposition temperature of 340°C, ensuring stability under high-temperature conditions.

1.6 Time to Delaminate: The PCB demonstrates excellent thermal stability, with T260 of 60 minutes and T288 of 30 minutes, providing reliability during demanding operations.

Benefits:

The 370HR 1.0mm material PCB offers numerous benefits to manufacturers and engineers alike:

2.1 FR-4 Process Compatible: This PCB seamlessly integrates into existing FR-4 manufacturing processes, simplifying adoption.

2.2 UV Blocking and AOI Fluorescence: It features UV blocking properties and AOI fluorescence, facilitating efficient inspection and quality control.

2.3 Multiple Reflow Capable: With the ability to undergo multiple reflow cycles, the PCB supports complex assembly processes.

2.4 HDI Technology Compatible: The PCB is compatible with High-Density Interconnect (HDI) technology, enabling the creation of compact designs with enhanced functionality.

PCB Stackup:

The 370HR PCB is an 8-layer rigid PCB with the following stackup:

PCB Construction Details:

PCB Statistics:

The 370HR PCB 1.0mm boasts impressive statistics that highlight its versatility and potential applications:

Type of Artwork Supplied: Gerber RS-274-X:

The 370HR PCB 1.0mm utilizes Gerber RS-274-X files as the standard artwork format. This widely accepted format guarantees compatibility and ease of use, allowing manufacturers to seamlessly integrate the PCB into their production processes.

Accepted Standard: IPC-Class-2:

The 370HRhigh TgPCB adheres to the IPC-Class-2 standard, ensuring the highest level of quality and reliability. This standard governs the acceptable tolerances, workmanship, and performance criteria for PCBs, providing assurance to customers and manufacturers alike.

Availability: Worldwide:

The 370HR PCB is readily available worldwide, catering to the global market's diverse needs. Whether you are located in North America, Europe, Asia, or any other region, this PCB can be easily sourced and integrated into your projects.

Some Typical Applications:

The 370HR PCB finds application across various industries due to its exceptional performance and reliability. Some typical applications include:

Computing, Storage & Peripherals: The PCB is well-suited for high-performance computing systems, storage devices, and peripheral devices.

Consumer Electronics: It can be found in smartphones, tablets, smart home devices, and other consumer electronics, delivering reliable functionality.

Networking & Communications: The PCB facilitates the development of networking equipment, routers, switches, and communication devices.

Medical, Industrial & Instrumentation: It meets the stringent requirements of medical devices, industrial automation systems, and precise instrumentation.

Automotive & Transportation: The PCB's durability and thermal performance make it an ideal choice for automotive electronics and transportation applications.

Conclusion:

With its cutting-edge design, superior thermal performance, and compatibility with FR-4 processes, the 370HR 1.0mm laminate PCB stands as a game-changer in the PCB industry. Its remarkable features, such as CAF resistance, UV blocking, multiple reflow capability, and HDI compatibility, make it a versatile solution for a wide range of applications. As it continues to gain traction worldwide, the 370HR PCB 1.0mm 6-layer promises to unlock new possibilities in the realm of electronics manufacturing, delivering enhanced performance, reliability, and longevity.
