Hybrid PCB Mixed Circuit Board Hybrid Design RO4350B+FR4 RO4350B+RT/duroid 5880 with Blind via

The hybrid PCB can be a mixture of FR-4 and high frequency material as abovementioned.

  • Item NO.:

    BIC-072-v138.0
  • Order(MOQ):

    1-10
  • Payment:

    T/T
  • Price Range:1 - 50/$99
  • Price Range:1 - 50/$2.9
  • Product Origin:

    China
  • Color:

    White
  • Shipping Port:

    Shenzhen
  • Lead Time:

    7-10 days
  • Product Detail


Hybrid PCB Mixed Circuit Board Hybrid Design RO4350B+FR4 With Immersion Gold RO4350B+RT/duroid 5880 with Blind via

(PCB's are custom-made products, the picture and parameters shown are just for reference)


Hello Everyone,

Today we're going to talk about hybrid PCB. We mainly refer to high frequency material mixed with epoxy glass.

Let’s see the stack-up to get idea about hybrid structure.


stackup FR-4 RO4350B


Layer 1 to layer 2 is the core of RO4350B high frequency material and layer 3 to layer 4 is the core of FR-4 epoxy glass. The 2 cores are bonded by a sheet of adhesive (prepreg).


Types of hybrid PCB

The hybrid PCB can be a mixture of FR-4 and high frequency material as abovementioned, another type is a mixture of high frequency material with different dielectric constant (DK), for example RT/duroid 5880 and RO4350B etc.


stackup RO4350B RT5880


Why do we use hybrid PCB?


There're 3 main reasons that convince us to use this type of high frequency multilayer PCB, i.e. cost, reliability improved and electrical properties enhanced.


The cost of high frequency material is much higher than FR-4, sometimes, when using hybrid of FR-4 and high frequency material can solve the cost problem.


It causes reliability problems when the CTE value of the PCB material used is relatively high, while some high frequency materials have high CTE characteristics. When a low CTE FR-4 material is combined with a high CTE material to make a multilayer board, the composite CTE is acceptable, thus enhancing reliability.


Most of the time, some lines of the mixed PCB board require very high electrical performance, some do not require high, in this case, the parts with low electrical performance requirements will be used FR4, while the parts with high electrical performance requirements will use more expensive high frequency materials. Some using different DK of material to make mixed PCB, it is also to improve electrical properties, such as in some applications of combiners and filters, using different values of DK material.

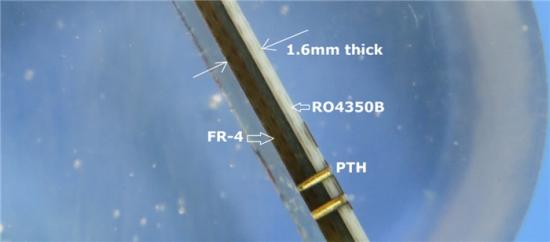

Micro-section of a hybrid PCB


Why choose FR-4?

Mixture of FR-4 and high frequency materials is becoming more and more common because FR-4 and the vast majority of high frequency materials have little compatibility problems.



Lamination

To get a reliable lamination, we first choose PP sheet of high frequency material and use the correct pressing cycle. The adhesive layer of the same material is more favorable for the simpler pressing cycle.


Our PCB Capability(Hybrid PCB):

PCB Type: Hybrid PCB, Mixed PCB
Mixed type: RO4350B + FR4;
RO4003C + FR4;
F4B + FR4;
RT/duroid5880 + FR4;
RT/duroid5880 + RO4350B
Solder mask: Green, Red, Blue, Black, Yellow
Layer count: 4 Layer, 6 Layer, Multilayer
Copper weight: 0.5oz (17 µm), 1oz (35µm), 2oz (70µm)
PCB thickness: 1.0-5.0mm
PCB size: ≤400mm X 500mm
Surface finish: Bare copper, HASL, ENIG, Immersion tin, OSP


Thank you for your reading and you’re welcome to contact us for your PCB enquiries.


BICHNEG PCB WORKSHOP:


BICHNEG PCB WORKSHOP


BICHNEG PCB CERTIFICATION:


BICHNEG PCB CERTIFICATION


BICHENG PCB MAIN COURIERS:


BICHENG PCB MAIN COURIERS



Leave A Message

If you have questions or suggestions,please leave us a message,we will reply you as soon as we can!

Related Products
Hybrid PCB
RF Hybrid High Frequency 4 Layer 8mil RO4003C FR-4 PCB

RO4003C exhibit a stable dielectric constant over a broad frequency range. This makes it an ideal substrate for broadband applications. And signal integrity performance improvement over the stack-ups with all FR4 board.

13.3mil RO4350B 31mil RT5880
Hybrid Microwave Circuit Boards PCB RO4350B and RT/Duroid 5880

The hybrid PCB can be a mixture of FR-4 and high frequency material, and a mixture of high frequency material with different dielectric constant (DK)

Hybrid High Frequency Multilayer PCB

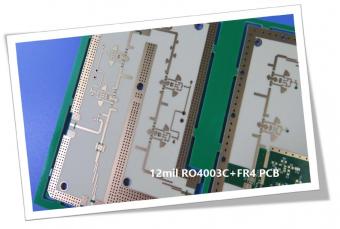

Hybrid High Frequency Multilayer PCB 6-Layer 12mil RO4003C and FR-4
