WL-CT300 PCB 10mil represents a remarkable advancement in high-frequency materials, offering exceptional performance, reliability, and ease of manufacturing.
Item NO.:
BIC-253-v318.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:
7-10 days

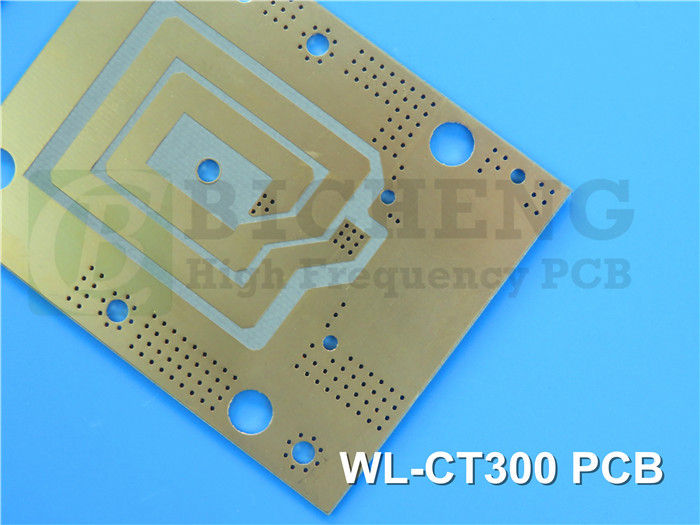

WL-CT300 PCB 10mil 0.254 mm Wangling 2-layer Rigid High Frequency Circuit Board Immersion Silver
Introduction
Wangling WL-CT300 organic polymer ceramic fiberglass cloth-covered copper clad laminates are revolutionizing the field of high-frequency materials. With a composition that includes hydrocarbon resin, ceramics, and fiberglass cloth, WL-CT Series PCB offers exceptional performance, low loss, and versatility. This cutting-edge thermosetting resin-based material provides a cost-effective solution for high-frequency designs, making it an ideal choice for various applications. In this comprehensive product description, we will delve into the features, construction details, statistics, and typical applications of WL-CT300 PCB 10mil, showcasing its exceptional qualities and highlighting its wide-ranging capabilities.
Features that Define Excellence
WL-CT300 PCB 10mil boasts an impressive array of features that set it apart in the market. Its exceptional performance makes it a standout choice for high-frequency applications. Let's explore the key features in detail:
1)Dielectric Constant and Dissipation Factor:
With a dielectric constant of 3.0 at 10 GHz/23°C, WL-CT300 ensures reliable signal transmission and minimal signal loss. Its low dissipation factor of 0.003 at 10GHz contributes to enhanced signal integrity, making it suitable for demanding high-frequency designs.
2)Excellent Thermal Stability:
WL-CT300 exhibits an outstanding Thermal Coefficient of Dielectric Constant (TCDK) of 27 ppm/°C, ensuring stability and reliability even in extreme temperature conditions. This exceptional thermal stability guarantees consistent performance, making it an ideal choice for applications where temperature fluctuations are a concern.
3)High Thermal Conductivity:
With a thermal conductivity of 0.41 W/MK, WL-CT300 efficiently dissipates heat, preventing excessive temperature rise within the circuit. This feature is crucial for applications that require effective heat management, ensuring optimal performance and durability.
4)Low Moisture Absorption:
WL-CT300 has a low moisture absorption rate of 0.15%, making it highly resistant to the negative effects of humidity and moisture. This characteristic enhances its reliability and longevity, particularly in environments where moisture exposure is a concern.
5)Matched Copper Coefficient of Thermal Expansion (CTE):
WL-CT300 is engineered to have matched copper CTE in the X, Y, and Z axes, with values of 15 ppm/°C, 14 ppm/°C, and 31 ppm/°C, respectively. This ensures excellent dimensional stability and minimizes the risk of delamination, warping, or solder joint failure, even when subjected to thermal cycling and varying environmental conditions.
WL-CT300 PCB Stackup
WL-CT300 high frequency PCB features a 2-layer rigid PCB stackup, offering simplicity and ease of manufacturing while maintaining high-performance characteristics.
Copper_layer_1 - 35 μm
WL-CT300 - 0.254 mm (10mil)
Copper_layer_2 - 35 μm
Construction Details
The following details outline its construction specifications:
PCB Construction Details |
Specifications |
Board Dimensions |
167.8mm x 91.6mm (1PCS, +/- 0.15mm) |
Minimum Trace/Space |
4/5 mils |
Minimum Hole Size |
0.3mm |
Blind Vias |
No |
Finished Board Thickness |
0.3mm |
Finished Cu Weight |
1oz (1.4 mils) outer layers |
Via Plating Thickness |
20 μm |
Surface Finish |
Immersion Silver |
Top Silkscreen |
No |
Bottom Silkscreen |
No |
Top Solder Mask |
No |
Bottom Solder Mask |
No |
100% Electrical Test |
Yes (prior to shipment) |
WL-CT300 PCB Statistics
To provide further insight into the capabilities and specifications of WL-CT300 10mil substrate PCB , the following statistics highlight its components, pad count, vias, and more:
PCB Statistics |
Count |
Components |
41 |
Total Pads |
190 |
Thru Hole Pads |
141 |
Top SMT Pads |
49 |
Bottom SMT Pads |
0 |
Vias |
162 |
Nets |
2 |
Accepted Standards and Artwork Compatibility
WL-CT3000.254mm materialPCBconforms to the IPC-Class-2 standard, ensuring high quality and reliability in accordance with industry benchmarks. The PCB accepts Gerber RS-274-X artwork, a widely adopted format that simplifies the manufacturing process and ensures compatibility with various design tools and software.
Availability and Worldwide Reach
WL-CT300 PCB 10mil is readily available worldwide, allowing customers from different regions to benefit from its exceptional performance and reliability. With global availability, customers can confidently incorporate WL-CT300 PCB 10mil into their high-frequency designs, regardless of their geographical location.
Typical Applications
WL-CT300 Wangling PCB finds application in a wide range of industries and sectors, thanks to its outstanding characteristics. Some typical applications include:
1)Base Station Antennas and Satellite Antennas:
WL-CT300 PCB 10mil provides the necessary performance and stability for base station antennas and satellite antennas, ensuring reliable signal transmission and reception in the field of wireless communication.
2)Automotive Radar, Sensors, and Navigation Systems:
The PCB's high-frequency capabilities make it an excellent choice for automotive radar systems, sensors, and navigation systems. Its low loss and exceptional thermal stability contribute to accurate and efficient operation in demanding automotive applications.
3)Power Amplifiers:
WL-CT300 PCB 10mil delivers the required performance for power amplifiers, enabling efficient power transmission and minimizing signal loss. Its excellent thermal conductivity aids in dissipating heat, ensuring optimal amplifier performance.
4)Satellite High-Frequency Heads:
With its low loss and high-frequency characteristics, WL-CT300 PCB 10mil is well-suited for satellite high-frequency heads. It provides reliable signal processing and superior performance in satellite communication systems.
5)RF Devices and Filters:
WL-CT300 PCB 10mil serves as an ideal substrate for RF devices and filters. Its low loss and excellent dielectric properties enable precise signal filtering and efficient RF circuitry, enhancing overall system performance.
6)WIMAX Antennas and Distributed Antennas:
WL-CT300 PCB 10mil supports the needs of WIMAX antennas and distributed antenna systems. Its high-frequency capabilities and reliable electrical connections contribute to seamless data transmission in wireless communication networks.
Conclusion
In conclusion, WL-CT300 PCB 10mil represents a remarkable advancement in high-frequency materials, offering exceptional performance, reliability, and ease of manufacturing. With its low loss, excellent thermal stability, and compatibility with standard fabrication techniques, it is an excellent choice for various high-frequency applications. Whether it's base station antennas, automotive radar systems, or power amplifiers, WL-CT300 high frequency circuit board provides the necessary foundation for reliable and efficient circuit designs. With worldwide availability and adherence to industry standards, it stands ready to empower engineers and designers in creating cutting-edge solutions in the realm of high-frequency electronics.
